Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 73

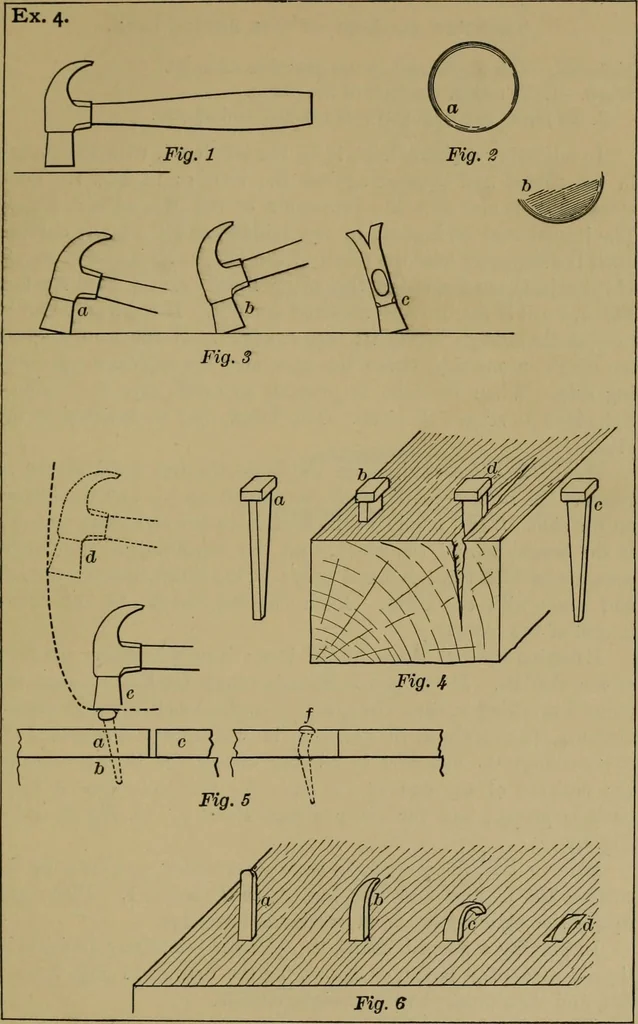

w of the hammer. Start-ing at fZ, it follows the direction of the broken line in its course;the effect of which is to bend the nail in such a manner that itforces the board a close up to c, as shown at/. This blow is prac-ticed in nailing floors and clinching wrought nails. If the point a.Fig. 6,… … 72 ORDINARY TOOLS. Exercise 5.—Use of the Jack-PIane. Material.—The block used in the previous exercise.Work.—1. To adjust the iron of the plane. 2. To plane two adjacent surfaces fiat and square. In adjusting a plane, hold it in the left hand, with the thumbin the throat and pressed against the…
Woodwork (Manual training) · Wood
