The practical cabinet maker and furniture designer's assistant, with essays on history of furniture, taste in design, color and materials, with full explanation of the canons of good taste in furniture .. (1910)
Hodgson, Frederick Thomas, 1836-1919 · Chicago, F. J. Drake & Co · leaf 239

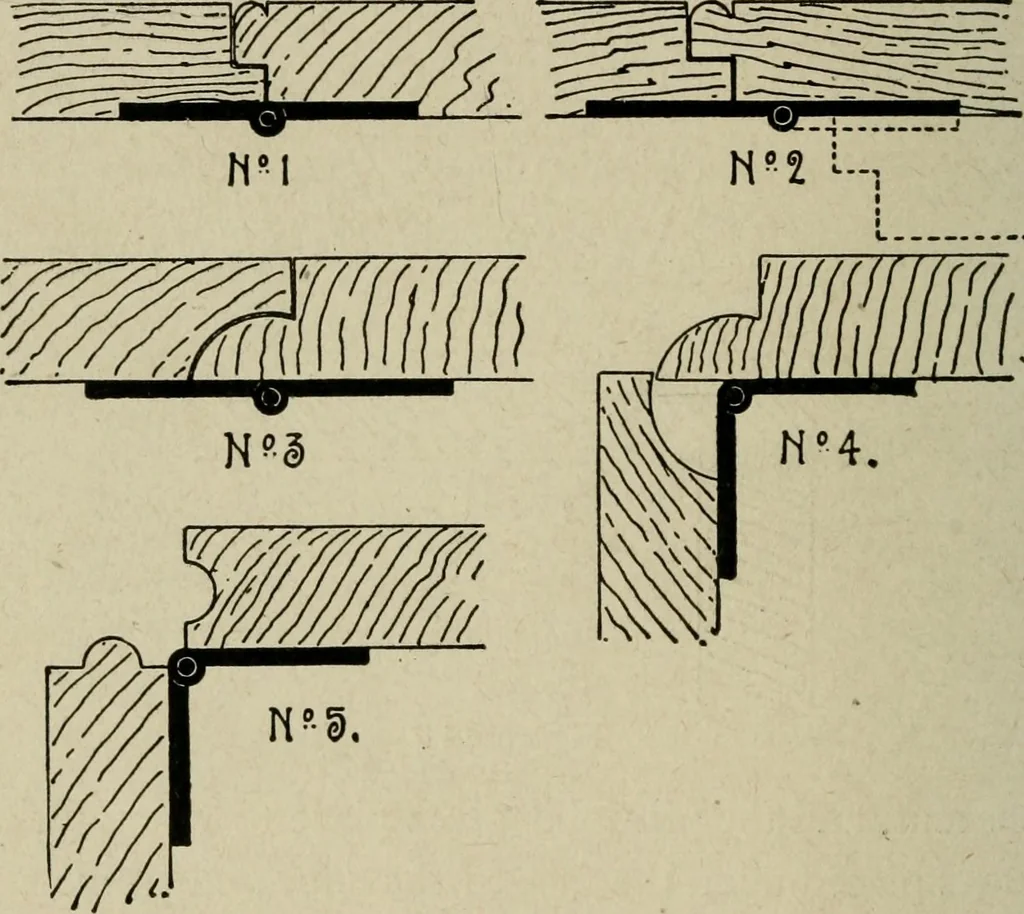

ed by screws. The ordinary way of hanging by butts is shown inNo. 1, Fig. 141, the rebate is not carried through thewood, and the knuckle projects on the front side. Ifthis is not desired, the hinges must be fixed flush, anda bead of the.same thickness as the knuckle run down 238 THE PRACTICAL… … Figure 142 In hanging a table-leaf, many forms may be adopted.No. 1, Fig. 142, shows a beaded and rebated joint, thecenter of the hinge being directly under the joint. Ex-ccpt for dust-proof or light-tight purposes, the rebateis not necessary. This joint would open to 90 degrees.Should the leaf or…
Cabinetwork · Furniture making
