Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 77

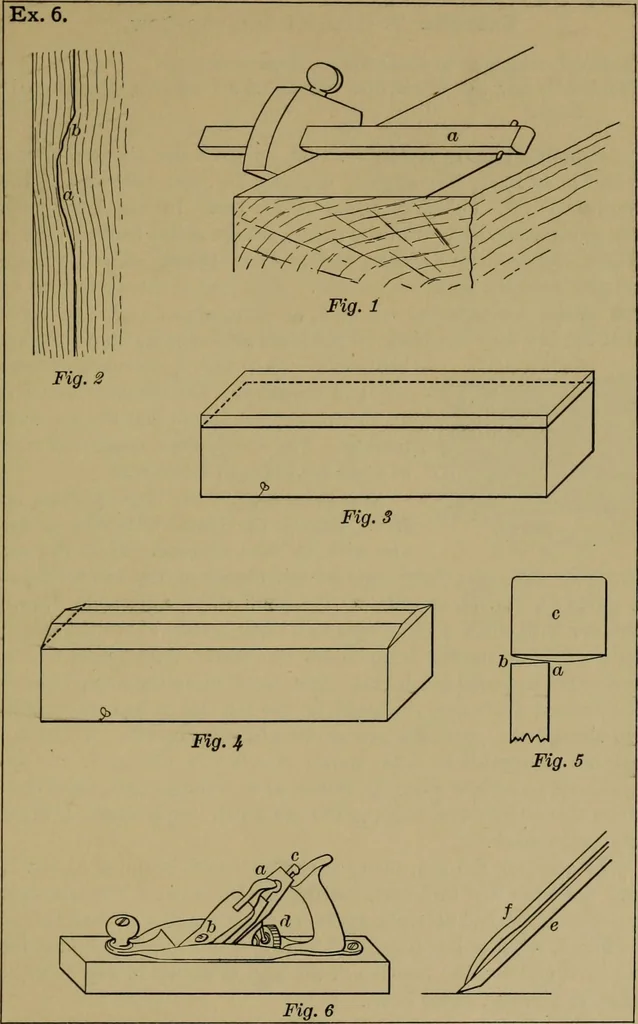

auge-marks. Fig. 5 shows the manner of truing the edge of a board by usingone side of the edge of the plane-iron. In the figure, c is the stock,a the high part of the edge. The fingers of the left hand are usedas a guide, and pass along the side of the board at h. Fig. 6 shows one of the best forms… … 76 ORDINARY TOOLS. Exercise 7.—Use of the Rip-Saw. Material.—Squared block of the previous exercises.Work.—To saw the block into boards which may be planed to ithick. Examine the rip-saw; note that its teeth are about four anda half to an inch; the angular opening 60°, and the slant of thetooth…
Woodwork (Manual training) · Wood
