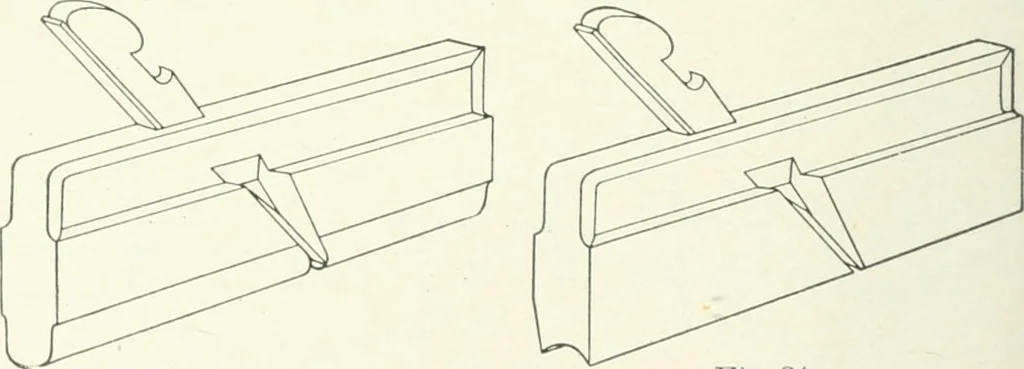

Fig. 32.plane shown in Fig. 32 is fitted with depth gange, and also with a spurcutter, both of which are often of great convenience to the workman,Rabbet planes are made in sizes ranging from \ inch to l\inches in width. The t-inch and 1^-inch are oonvenient sizes forgeneral work. … Fig. a3. Fg- ^• Round and Hollow Planes. Th(^se planes are illustrated inFigs. 33 and 34. They are made of different curvatures, and a setof assorted sizes, especially the rounds, are almost indispensableto the pattern maker for finishing semicircular core boxes, formaking fillets, and for working…
