Exercises on Euclid and in modern geometry for the use of schools, private students, and junior university students (1881)
McDowell, James L · Cambridge, Deighton, Bell, and Co. · leaf 229

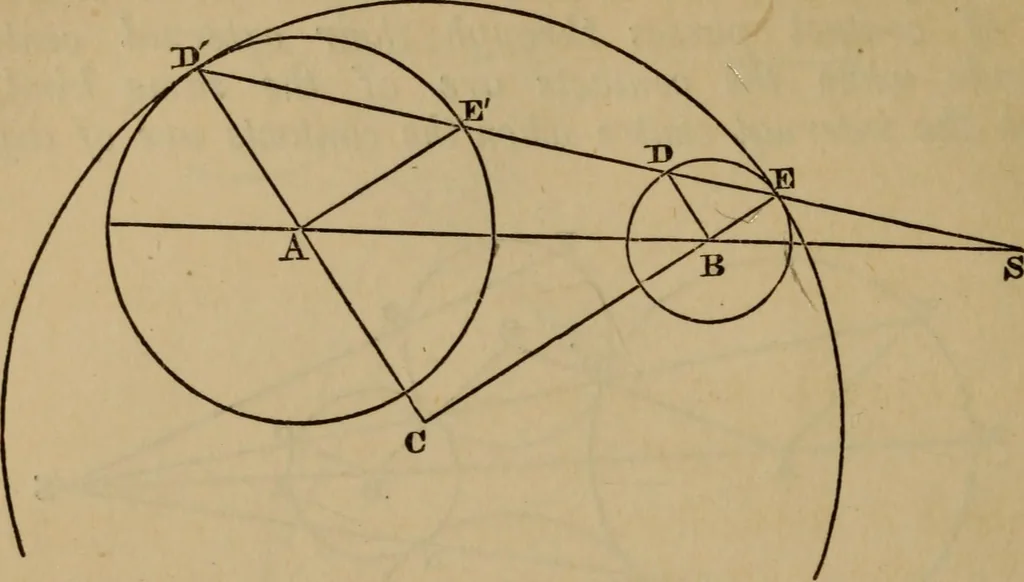

Fig. 2. 200 EXERCISES ON EUCLID [229. centre of the variable circle touching the two former in the pointsD, E. Join AG and BG, passing respectively through D and E(III. 11, 12), and let DE and AB meet in S. Then shall S be acentre of similitude of the two circles (A) and (B). Since the tri- … Fig. 3- angles ADE\ CDE, and BDE are isosceles, it is clear that ADand BD are parallel. Therefore, from the similar triangles ASDand BSD, we have AS : SB :: AD : BD,
Geometry
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
