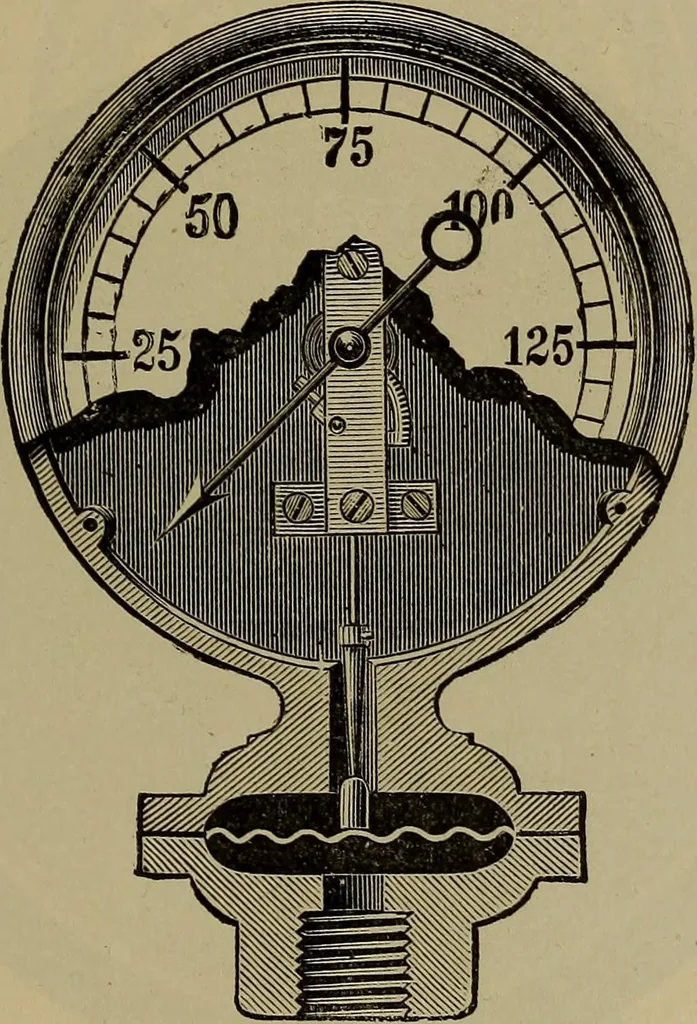

Fig. 129.—Bourdon Gauge. In nearly all these gauges lost motions of the parts areto some extent taken up by a light hair-spring wound aroundthe needle-pivot. § 278.] MEASUREMENT OF PRESSURE. 3JT 278. The Diaphragm Pressure-gauge. — In the dia-phragm-gauge the pressure is resisted by a corrugated… … Fig. 130.—Diaphragm-gauge. In Fig. 130 the pressure is exerted on the corrugated dia-phragm below the gauge, and the motion is transmitted to thehand by the rods and gears shown in the engraving. The construction shown in Fig. 131, in which the diaphragmis vertical, is as follows: the lever is in…
