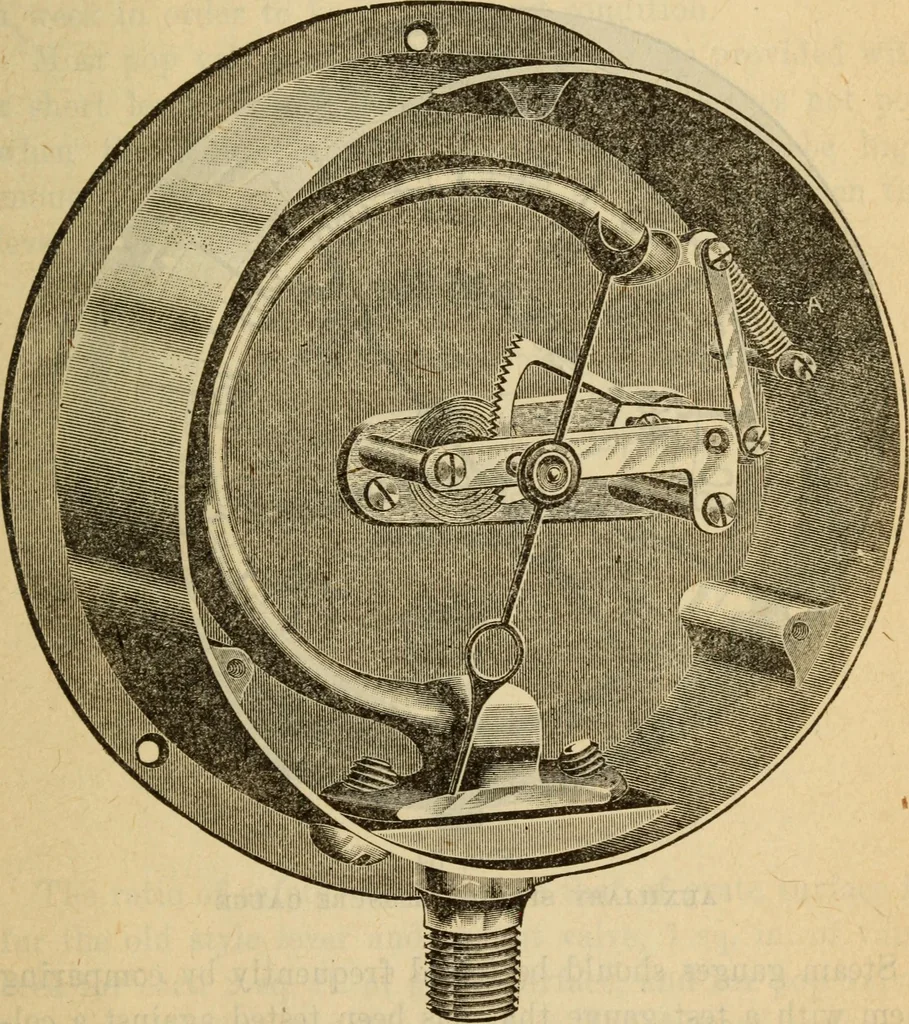

reliable, is known as the Bourdon spring gauge (see Fig.53). This gauge consists of a thin, curved, flattened metal-lic tube, closed at both ends and connected to the steamspace of the boiler by a snxall pipe, bent at some portion ofits length into a curve or circle that becomes filled with Boiler… … Fig. 53 AUXILIARY SPRING PRESSURE GAUGE, SECTIONAL VIEW the spring, tending to straighten it. The end or ends ofthe spring being free to move, and connected by suitablegeared rack and pinion with the pointer of the gauge, this 134 Steam Engmeering hand or pointer is caused to move across the dial,…
