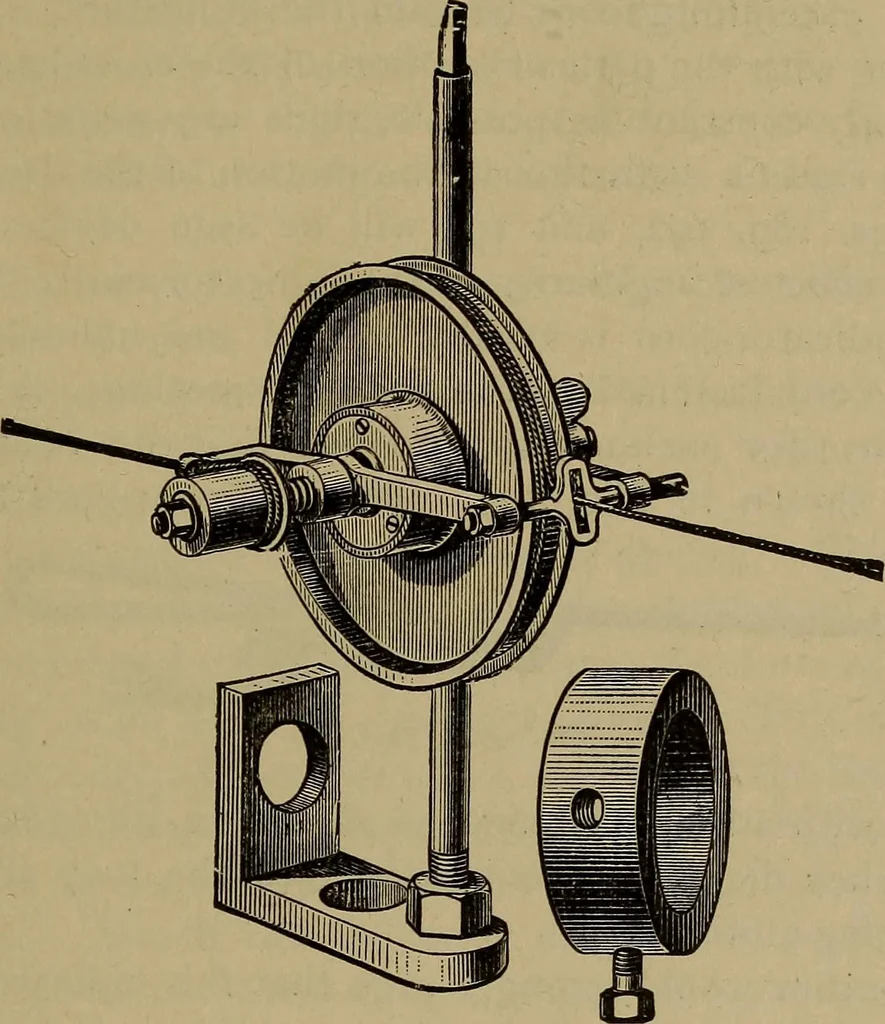

ers. The method of attach-ing this reducing-motion to an engine is shown in Fig. 194. 391. The Indicator-cord.—The indicator-cord should be asnearly as possible inextensible, since any stretch of the cordcauses a corresponding error in the motion of the indicator-drum. As it is nearly impossible to… … Fig. 193.—SCHAEFFER AND BUDENBERG ReDUCING-MOTIOK.
