Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 509

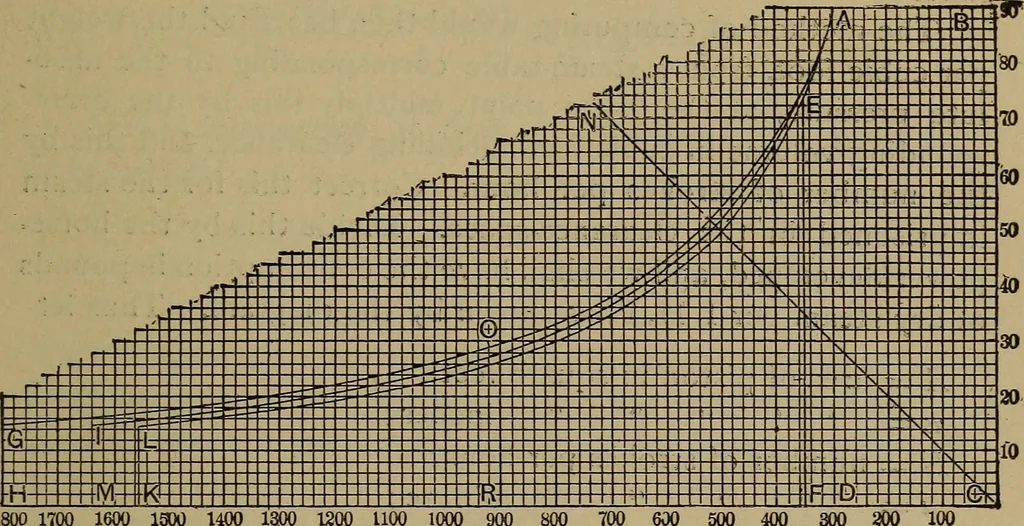

by abscissae. * Rankines Steam-engine, page 385. •j-See Thurstons Engine and Boiler Trials, page 251. § 4o6.] THE INDICATOR-DIAGRAM. 499 In the figure the curve A to 6^ is the hyperbola, y4, to / thes^aturation curve, and A to L the adiabatic curve, OH is thea,xis of the hyperbola, of which OB and… … 1800 1700 1600 130O 1400 1300 1200 UOO 1000 900 800 700 600 500Fio. 2o6.—The Three Expansion Cukves. 400 300 300 to a condition in which the moisture is decreasing, thelatteragreeing more closely with the actual condition. 406. Weight of Steam from the Indicator-diagram.—The diagram shows by direct…
