Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 515

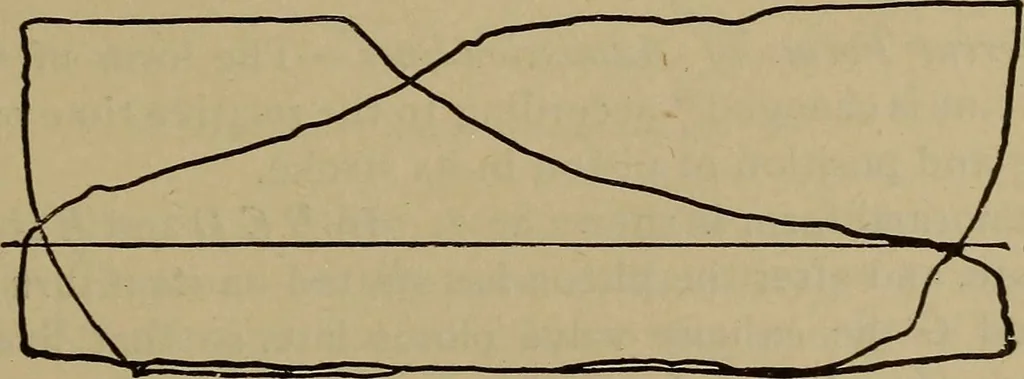

Fio. 209.—Loss BY Cylinder-condensation. possible in such cases to determine the defect from the dia-gram, and to suggest the proper remedy. A few examples aresubmitted. Such examples could be multiplied indefinitely,and skill and experience will, in general, be required to prop- Top of… … Fig. 210. Vacuum side. -Unsymmetrical Valve-setting. eriy interpret them. Thus Fig. 210 is an illustration of a dia-gram taken when the valves were set unsymmetrically. Curvesor waves in the expansion or compression lines indicate inertia- 5o6 EXPERIMENTAL ENGINEERING. [§409. effects in the…
