Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 519

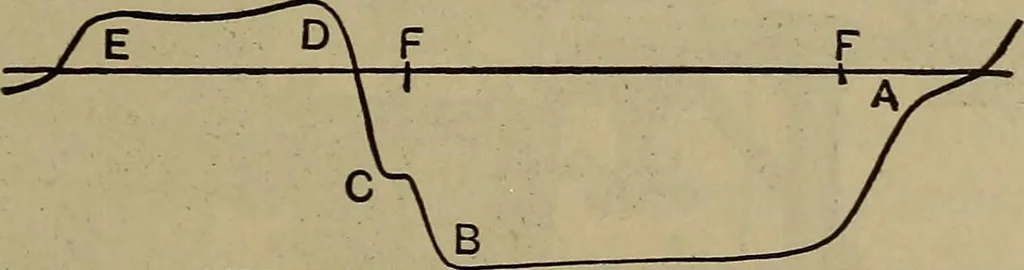

Fig. 214.—Combined Diagram from Triple-expansion Engine. In such a case, shown by Fig. 215, the ordinates will be asbefore proportional to the pressures per square inch acting onthe piston, but the abscissae will correspond to distances moved … Fig. 215.—Shaft-diagram. through by the crank-pin. In Fig. 215 ^ to ^ Is the exhaust,from B to C compression, D to £ steam line, ^ to ^ expan-sion. Diagrams may also be taken with the indicator mountedon the valve-chest; in this case the indicator would show vari-ation in pressure in the…
