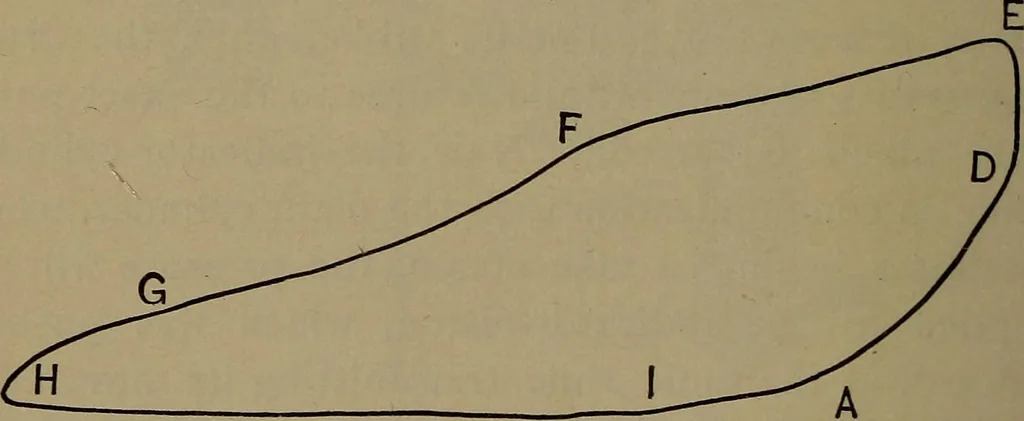

hericline. DE is the admission-line, D being the point 360 LOCOMOTIVE ENGINE RUNNING. where the valve opens to admit steam. EF is thesteam-line, beginning at the point of change in direc-tion of the admission-line. The steam-line in thisdiagram drops down before tfce point of cut-off isreached,… … Fig. 45- of the stroke. HI is the line of counter-pressure, andis high or low according to the quantity of steam leftin the cylinder by the exhaust. The use of smallnozzles always causes a high counter-pressure line.The compression-line begins at /, the point where thevalve closes, and runs up to…
