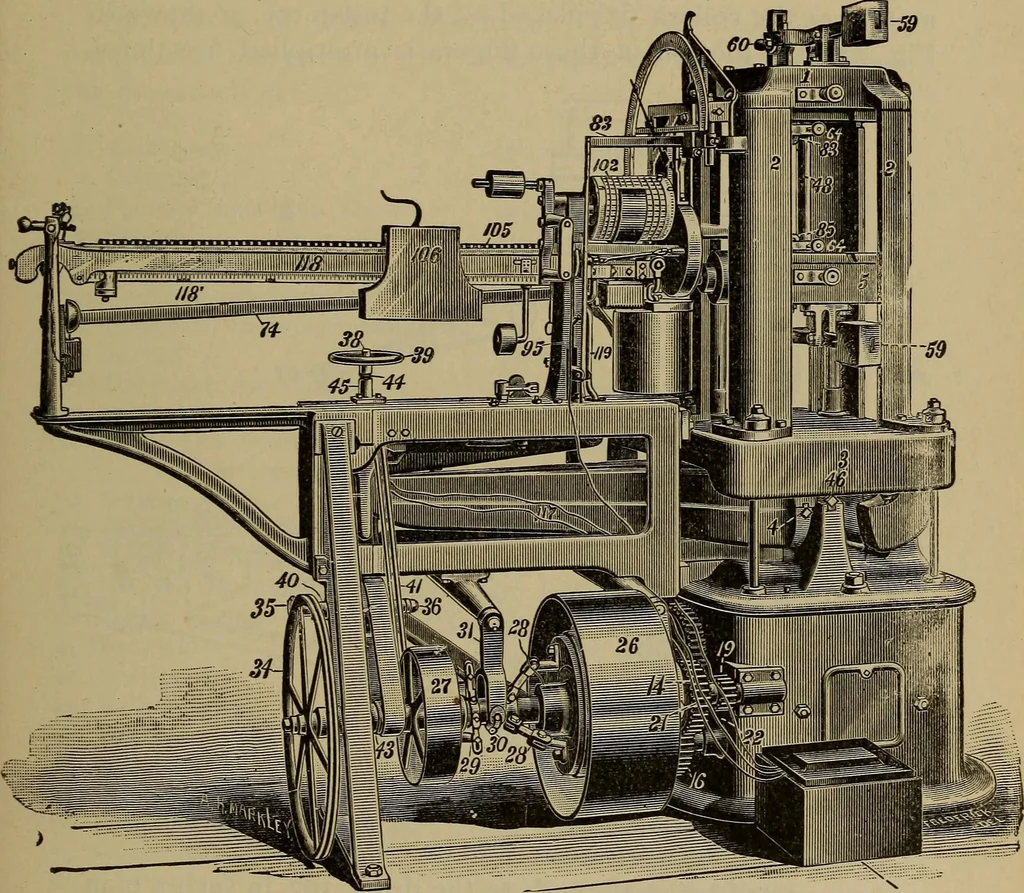

orm of the m.achine is shown in Figs. 35 and36, from which it is seen that the principles of constructionare the same as in the machine last described. §71.] STRENGTH OF MATERIALS—TESTING-MACHINES. 93 The intermediate platform or draw-head is operated byfour screws instead of by two, and there is a… … Fig. 36.—Thb Olsbn Testing-machine, Rear View. 71. The Olsen Autographic Apparatus.—This apparatusfor drawing strain-diagrams is entirely automatic, and isoperated substantially as follows: The diagram is drawn on a drum (103), parallel to the scale-beam, by a pencil actuated by a screw-thread cut…
