Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 89

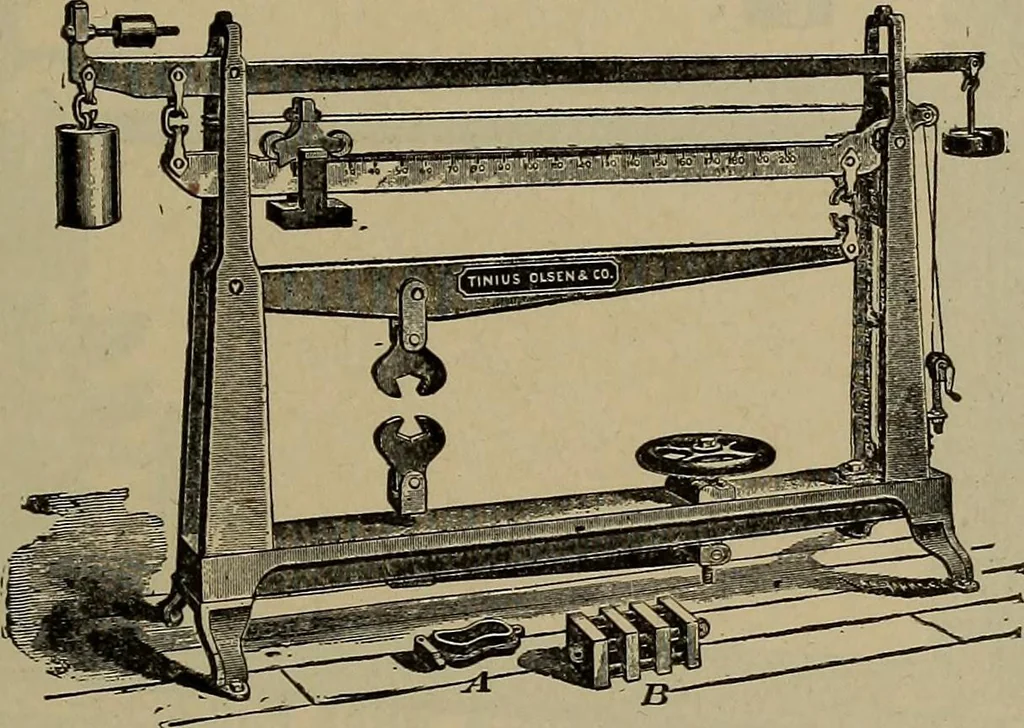

ls, closes a valve, and stops the flow ofshot. In Fig. 43 il/ is a closed mould for forming a briquette,5 the mould opened for removing the briquette, T a. briquettewhich has hardened, and [/one which has been broken. Directions.—Hang the cup /^ on the end of the beam D, asshown in the… … Fig. 44.—Olsens Cement-testing Machine, ated beam D will rise nearly to the stop K. Open the automaticv^alve /so as to allow the shot to run slowly. Stand back andleave the machine to make the test. When the specimen breaks, the beam D drops and closesthe valve /. Remove the cup with the shot in…
