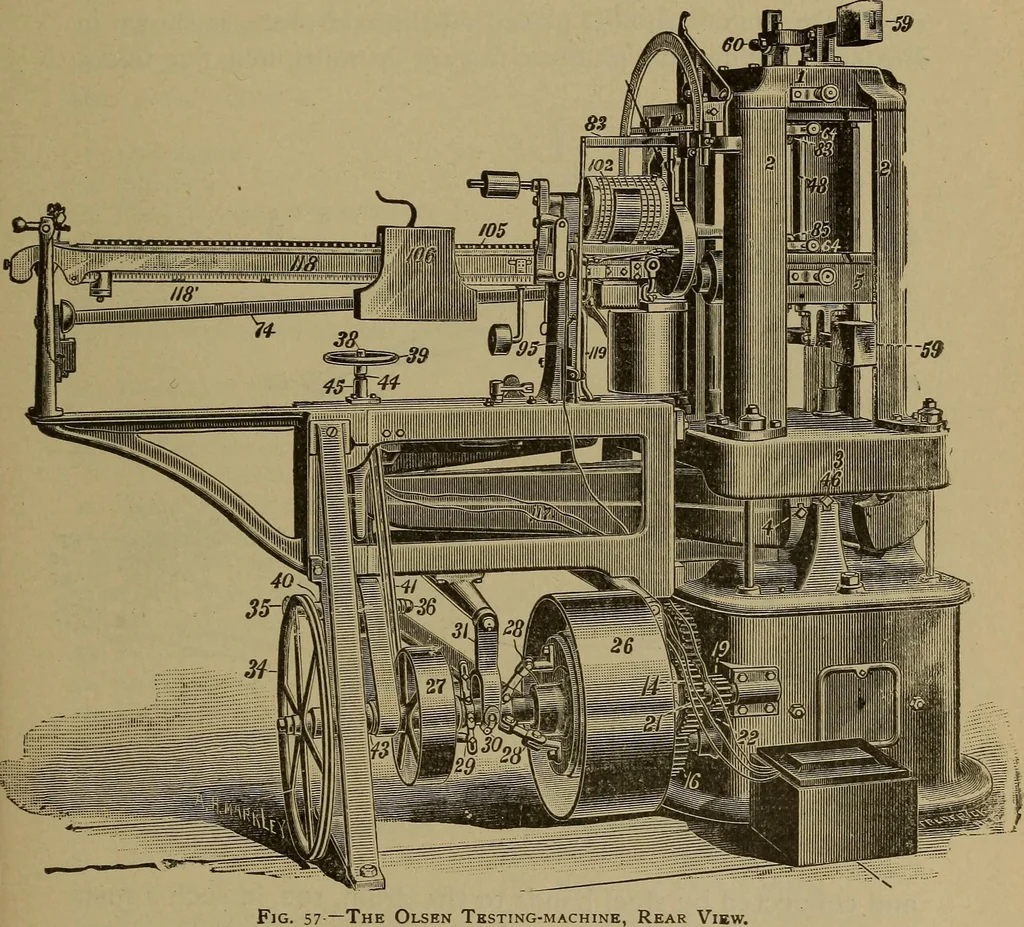

chine is shown in Figs. 56 and57, :rom which it is seen that the principles of constructiont^v, the same as in the machine last described. § 7l • J S TR!-NG TH OF MA TERIALS— TESTING-MA CHINES. I I I The intermediate platform or draw-head is operated by-four screws instead of by two, and there is a… … 71. The Olsen Autographic Apparatus.—This apparatusfor drawing strain-diagrams is entirely automatic, and isOperated substantially as follows : The diagram is drawn on a drum (103), parallel to the scale-beam, by a pencil actuated by a screw-thread cut to a fine pitch 112 EXPERIMENTAL ENGINEERING.…
