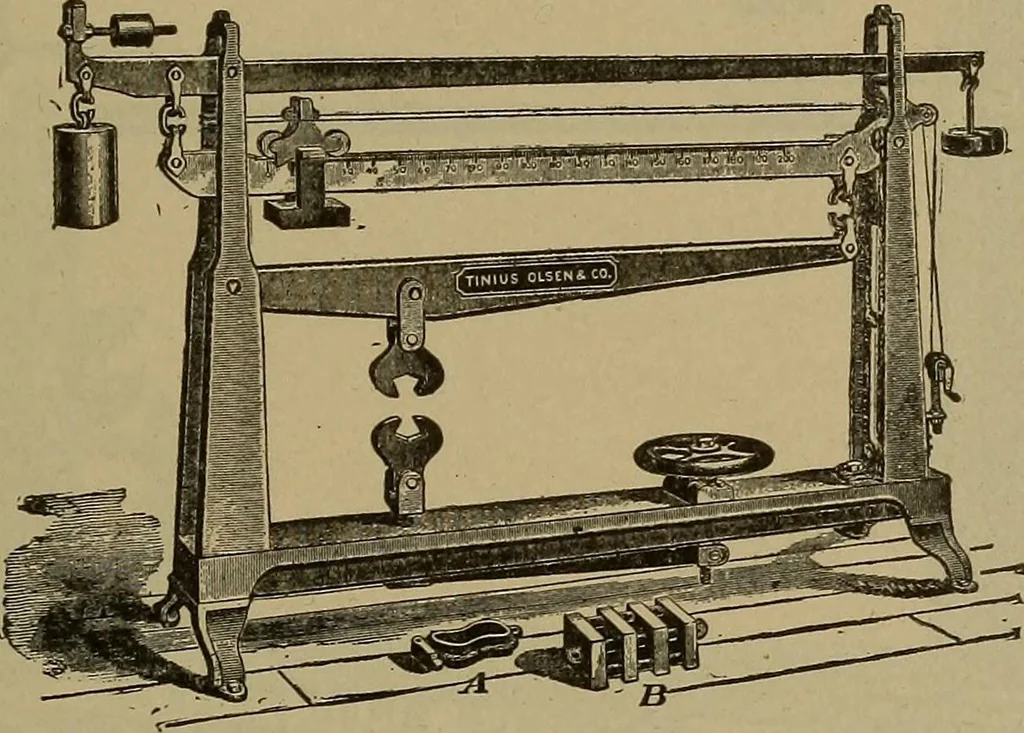

falls, closes a valve, and stops the flow ofshot. In Fig. 64 M is a closed mould for forming a briquette,S the mould opened for removing the briquette, T a briquettewhich has hardened, and £7 one which has been broken. Directions.—Hang the cup F on the end of the beam D, asshown in the… … Fig. 65.—Olsens Cement-testing Machine. ated beam D will rise nearly to the stop K. Open the automaticv^alve /so as to allow the shot to run slowly. Stand back andleave the machine to make the test. When the specimen breaks, the beam D drops and closesthe valve /. Remove the cup with the shot in…
