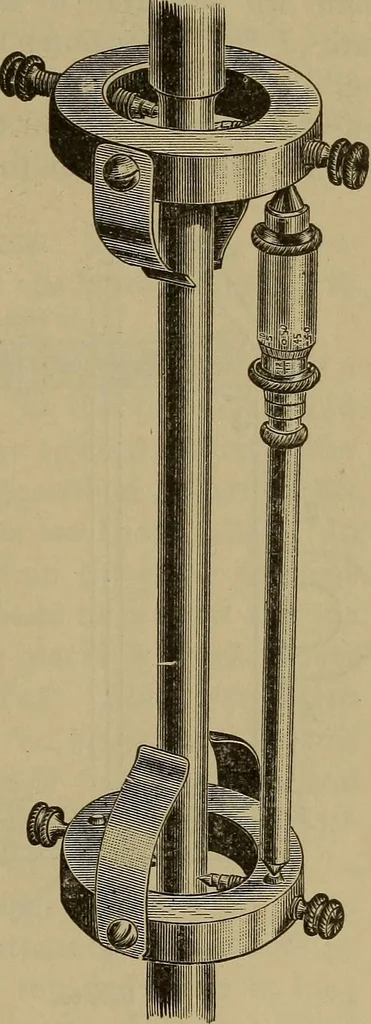

ade with bell andbattery at m, n, and m\ n, so that contact of the micrometer-screws is indicated by sound. The construction of the clamp-ing device is fully shown in the plan view, Fig. 81. The principal peculiarity of this extensometer consists in theaddition of four pulleys, Clt C2, C% and CA,… … Fig. 78. 134 EXPERIMENTAL ENGINEERING. [§86. drum. It is at once evident that any extension of the speci-men SS will draw in the free end of the cord at twice therate of the extension; moreover, any slight swinging or rock-ing of the extensometer head will produce compensatingeffects on the length…
