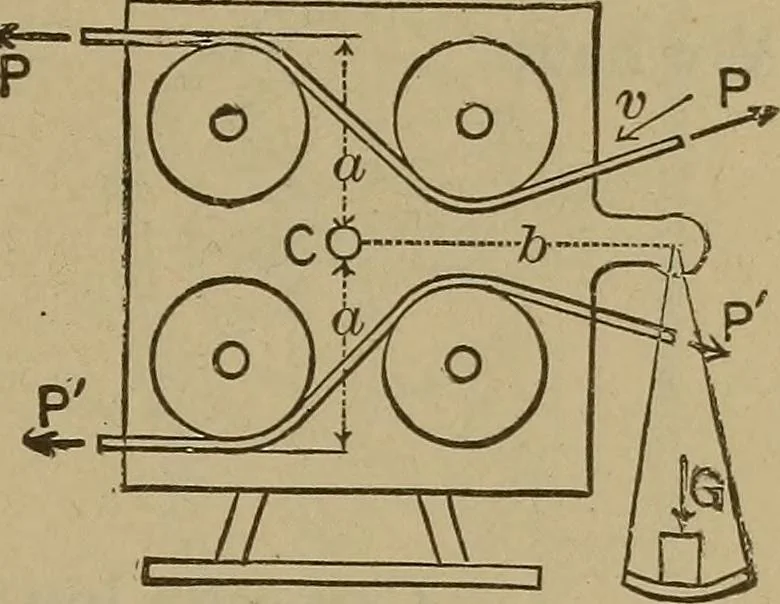

causedby slipping, they have not beenextensively used. The followingform, from Churchs Mechanicsof Materials, is probably as suc-cessful as any that has been de-vised. It consists of a verticalplate, carrying four pulleys and ascale-pan, as shown in Fig. 138.The scale-beam is balanced, thebelt then… … Fig. 138.—A Belt-dynamometer. Gb = Pa-Pa, (1) since .Pand Pf on the right have no leverage about C9 as theline of the belts produced intersects C. From (1) a (2) The work transmitted in foot-pounds per minute is equalto (P — P)v, in which v is the velocity of the belt in feet perminute to be…
