Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 352

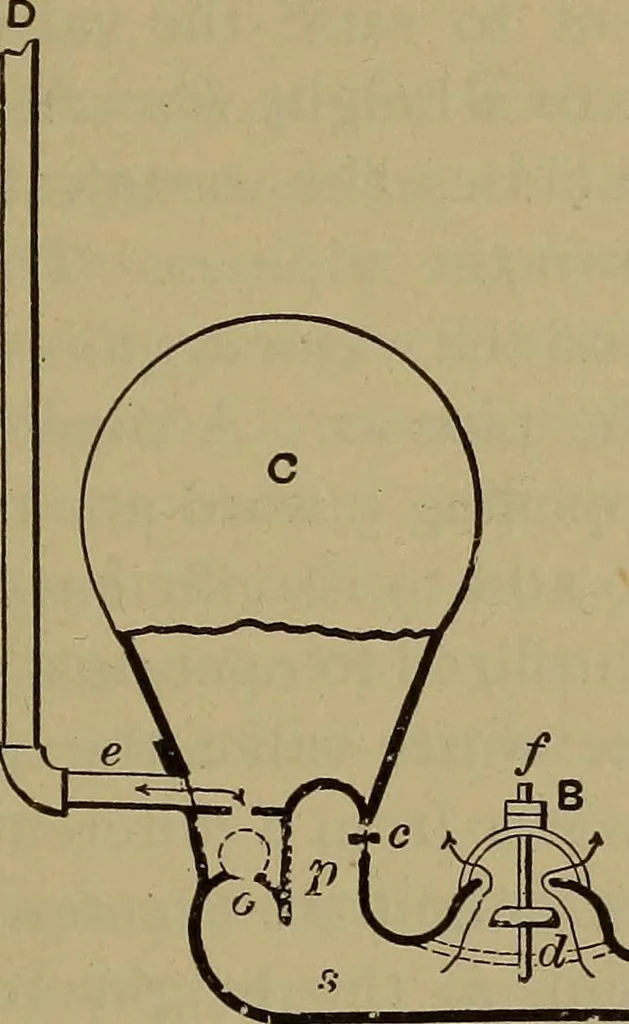

$ 249-] HYDRAULIC MACHINERY. 321 249. The Hydraulic Ram.—The hydraulic ram is a ma-chine so arranged that a quantity of water falling a height kforces a smaller quantity through a greater height h\ … 2 - > 0 Fig. T59.—Hydraulic Ram. The essential parts of the hydraulic ram are: I. The air-chamber C, connected with the discharge-pipe eD, and pro-vided with a clack or check-valve 0, opening into the chamberC from the pipe ss. 2. The waste-valve, Bd, is a weighted clack or check-valve, opening…
