Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 561

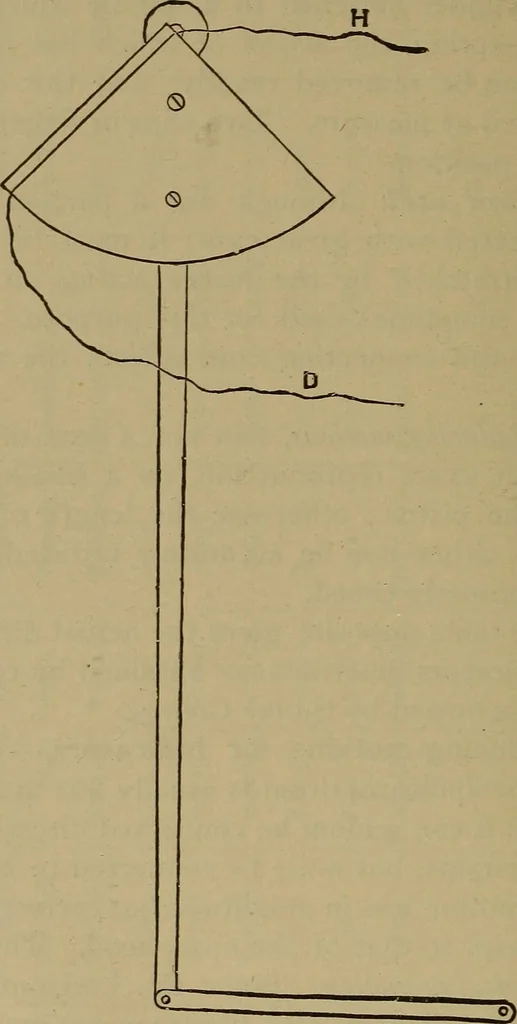

iston, it is evident that theaccuracy of the diagram depends upon the accuracy of thereducing-motion. Various combinations of levers and pulleyshave been used * for reducing-motions, a few of which will be See Thurstons Engine and Boiler Trials. 530 EXPERIMENTAL ENGINEERING. [§ 390. described.… … FlG. 242.—The Simple Pendulum Reducing-motion. The cheaper and more easily arranged reducing-motion*consist usually of some form of swinging lever or pendulum(see Fig. 242) pivoted at one point, and connected at itslower end to the cross-head by a lever. The indicator-cordis attached to the…
