Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 112

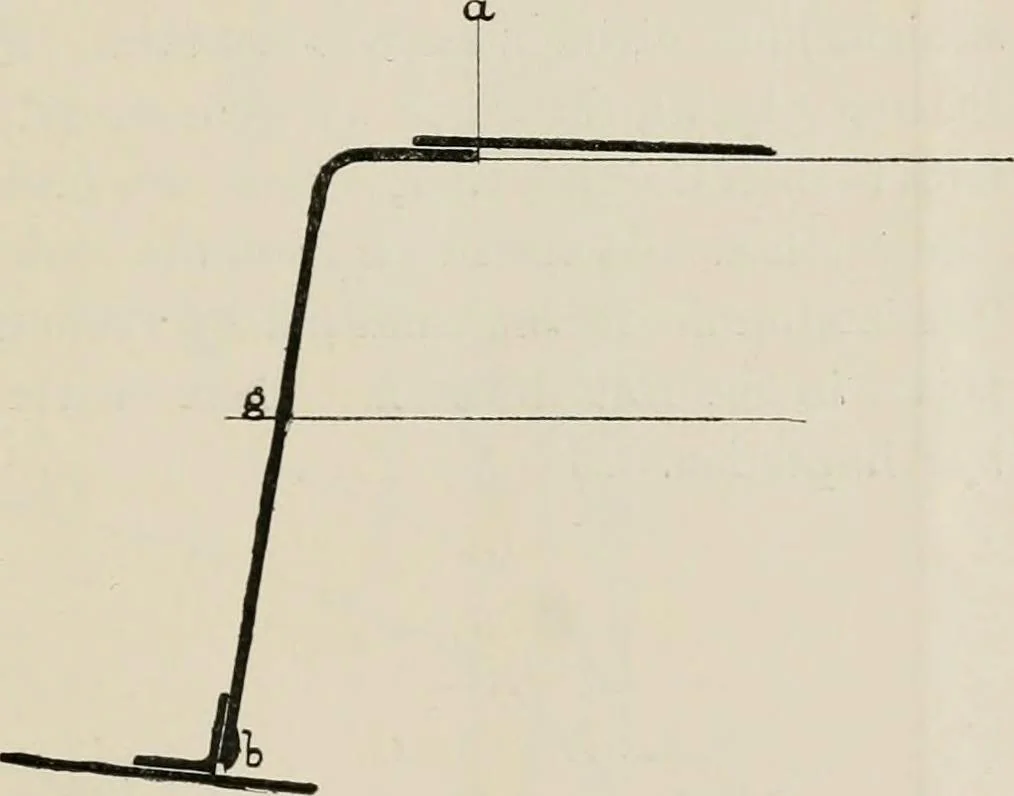

on a large section, or on theloft floor Body, by drawing the curve of the plate and its position onthe inner edge (see Fig. 38). Then girth from //, //, i, etc., to eachinner point a and set these girths off above the expansion line g 0 ontheir respective stations, and draw a curve through the…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
