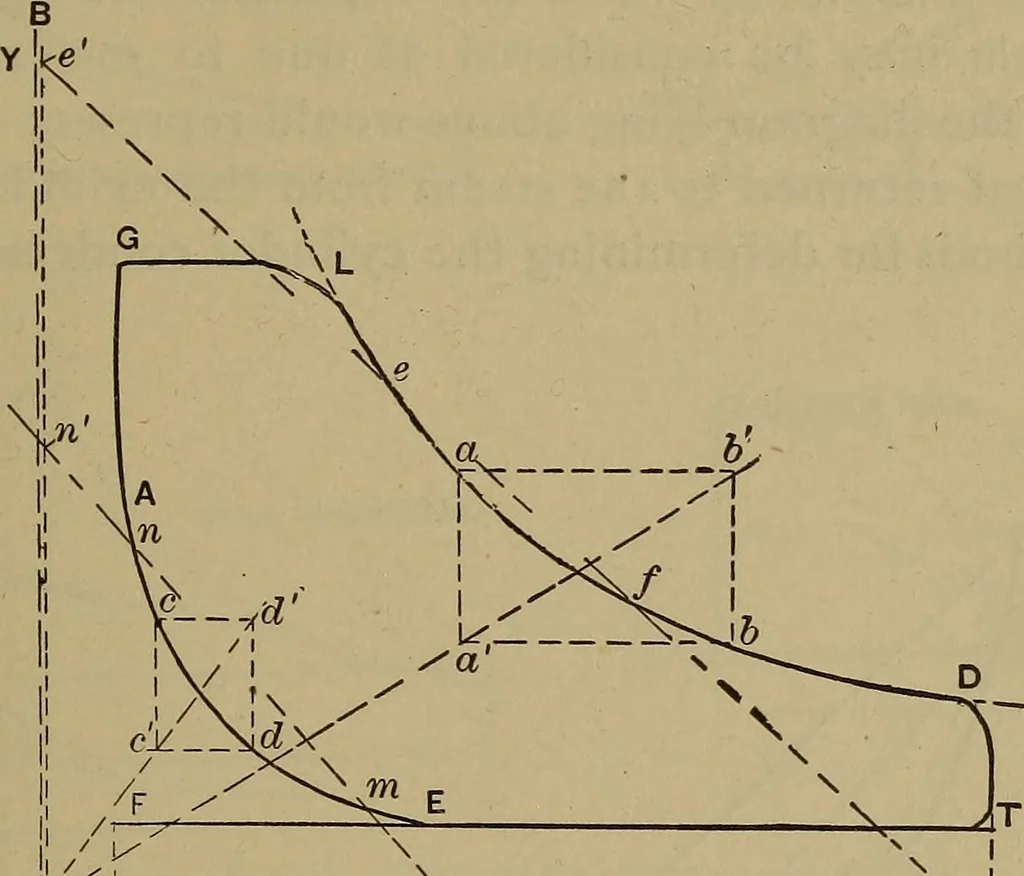

corresponding to the atmospheric pressure. Theposition of the clearance line can be determined by two methods,corresponding to those used in drawing the hyperbola. First § 4o8.] THE INDICATOR-DIAGRAM. 56l method: Take two points, a and b in the expansion curve andc and d in the compression line,… … _^L \? V^-o Fig 263.—Methods of Finding the Clearance. a point in the clearance line CB, and the clearance will equalCN-T-FT. Second method: Draw a straight line througheither curve, as mn through the compression curve or efthrough the expansion curve, and extend it in both direc-tions. On the line…
