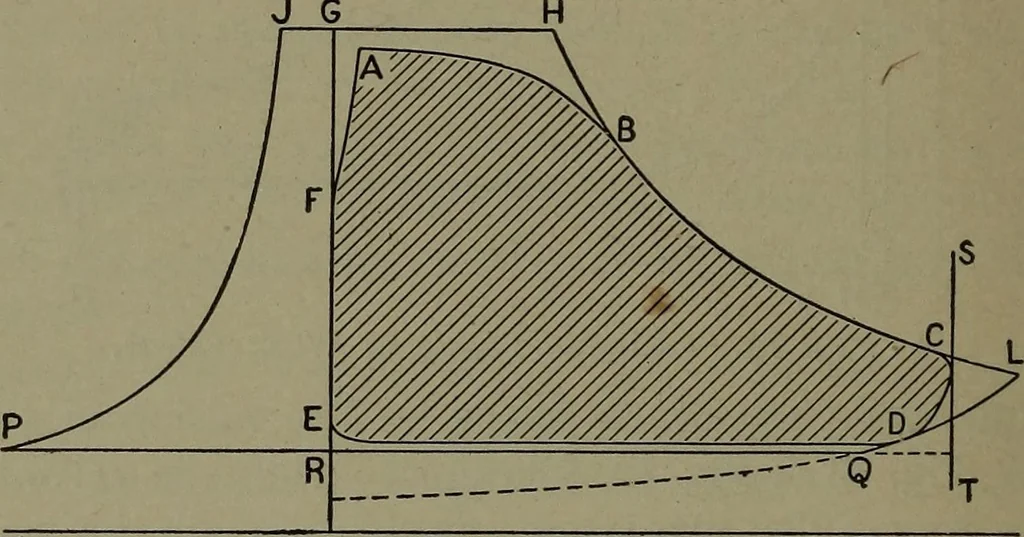

with the working steam.We now assume, as a rough first approximation, that the curve UFEis retraced in expansion, down to the lowest pressure. Actually, be-cause of condensation by the cylinder walls and shrinkage in volume,of which the clearance steam suffers its full share, the latter… … MO N Fig. 75. — The Diagram of True Expansion. ume of the active steam must be measured, at any pressure, fromthis curve — or from the position of an imaginary partition betweenthe two bodies of steam. Since the reversed compression curve extendsso far to the right, especially after it gets below…
