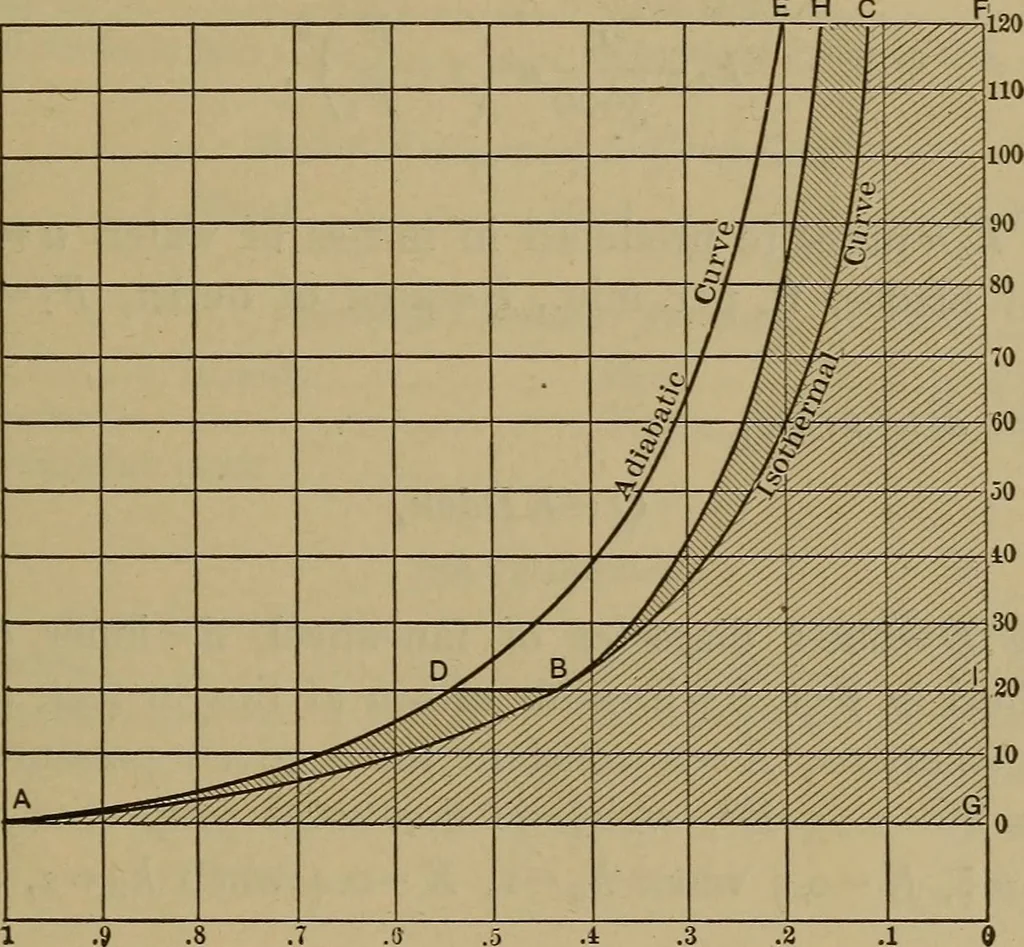

e (134.7pounds absolute). The area of the diagram ADEFG representsin a similar manner the work done in compressing the samevolume of air through the same pressures adiabatically. The § 473-: A IR- COMPRESSORS. 729 difference in these areas shows the loss in work due to the riseof temperature during… … Fig. 330. from A to D in the first cylinder, the excess of heat is removedby the intercooler, reducing the volume from D to B; it is thencompressed adiabatically, B to H, in the second cylinder. Thedifference in area DBHE represents the saving in work by thetwo-stage or compound compressor as…
