The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 111

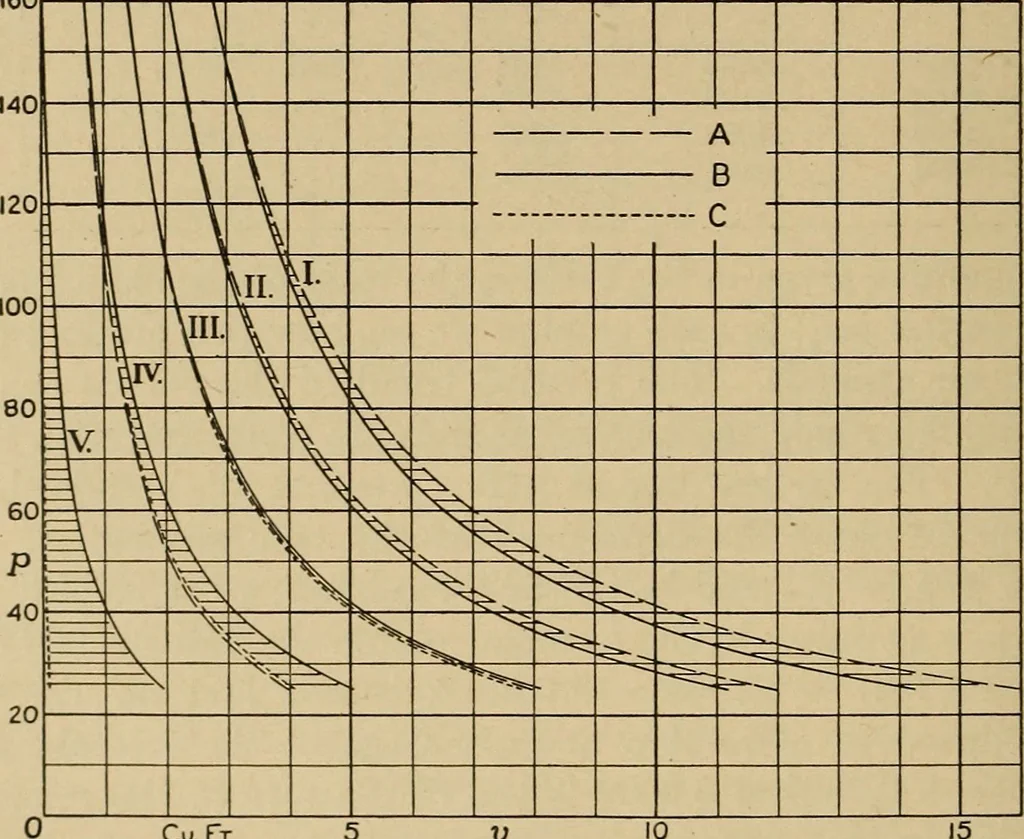

posed to be fixed by initial Xi. If it were made a function of x orof p, down the curve, the equation might be accommodated to the truelaw, but it would then be too complicated for convenient use. Exceptfor approximations of comparatively short range, the simple formulais not reliable. That the… … Co. Ft. 5 l> 10 15 Fig. 51. — Adiabatic Curves for Wet Steam.A. Constant quality. B. Exact adiabatic. C. Adiabatic by Eq. (94). (e) The Effect of Initial Condition upon the form of the adia-batic pressure-volume curve is shown by Fig. 51, which transfers tothis plane of representation the…
Steam-engines · Steam-turbines
