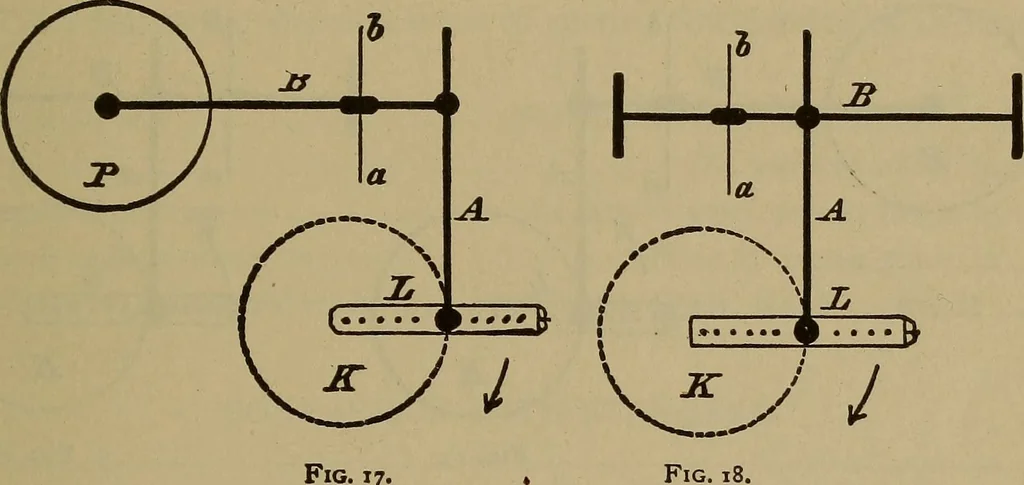

ATUS 53 The method of testing is illustrated in Figs. 17, 18, 19, and20. Figs. 17 and 18 show the method with reference to thepolar planimeter; Figs. 19 and 20 show the correspondingmethods of testing the rolling-planimeter. In Figs. 17 and 19P is the position of the pole, B the pole-arm, and A the… … Fig. 17. carefully revolving so as to swing the check-rule as shownby the arrow. Take readings of the vernier at initial point,and again on returning to the starting-point: the difference ofthese readings should give the area. Repeat this operationseveral times. The instrument is now placed in the…
