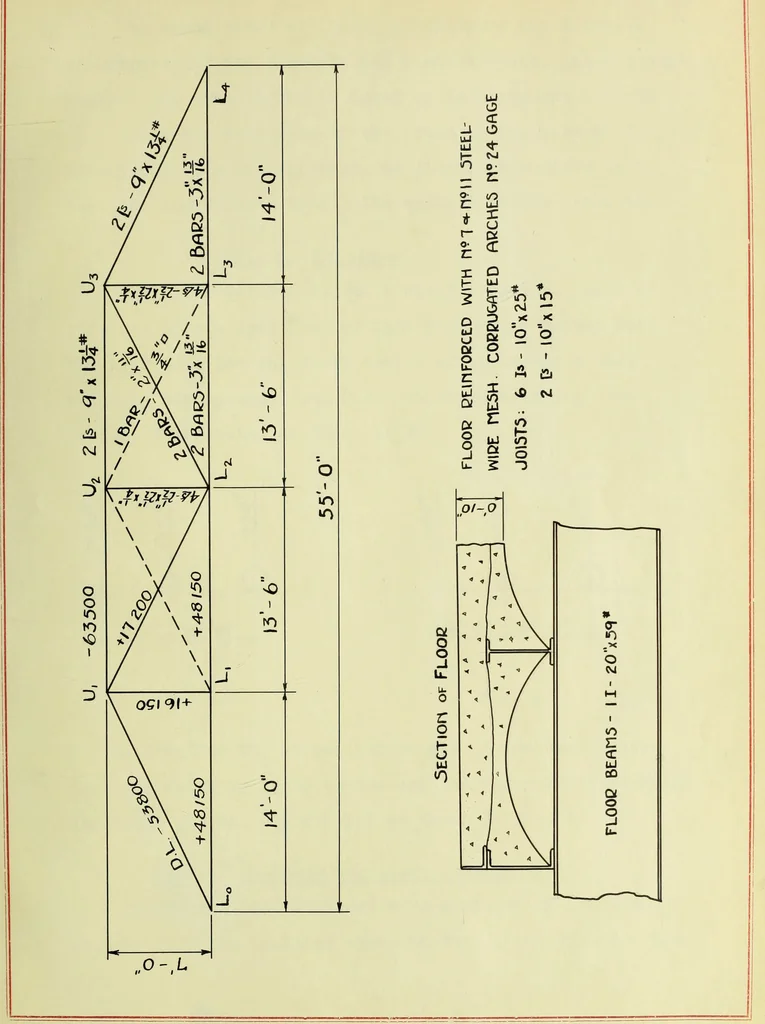

ownin the tables in Art. 5. Art. 3. Description of Bridge.The bridge spans the Salt Fork drainage ditch at thenorthwest end of Crystal Lake Park. It is a pin-connected,pony Pratt truss, having a cantilever sidewalk outside theeast truss. The floors of both roadway and sidewalk are solidslabs of… … The upper chord of the truss carrying the sidewalkis composed of two channels and a cover plate, laced under-neath. The other truss is laced on both top and bottom. All tests were made on the truss on the side of thebridge opposite the sidewalk, as it was impossible to at-tach the instruments to…
