Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 38

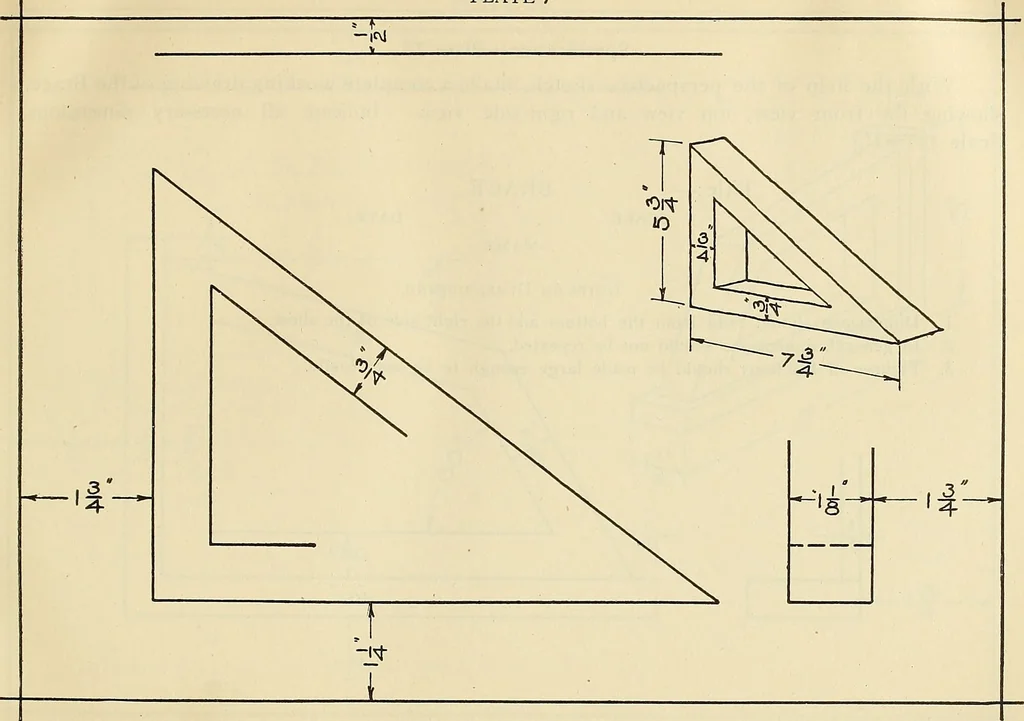

well-placed dimensions are a very important part of a working drawing.They are fully as important as the lines which indicate the shape of the object drawn andshould be placed carefully. The figures and arrow-heads should be well executed so that theymay be read easily and their meaning may not be… … 36 MECHANICAL DRAWING PROBLEMS Specification—Plate 7A, With the help of the perspective sketch, make a complete working drawing of the Brace,showing the front view, top view and right-side view. Indicate all necessary dimensions.Scale I2=i. Title:— BRACE SCALE DATE NAME Notes on Dimensioning. 1.…
