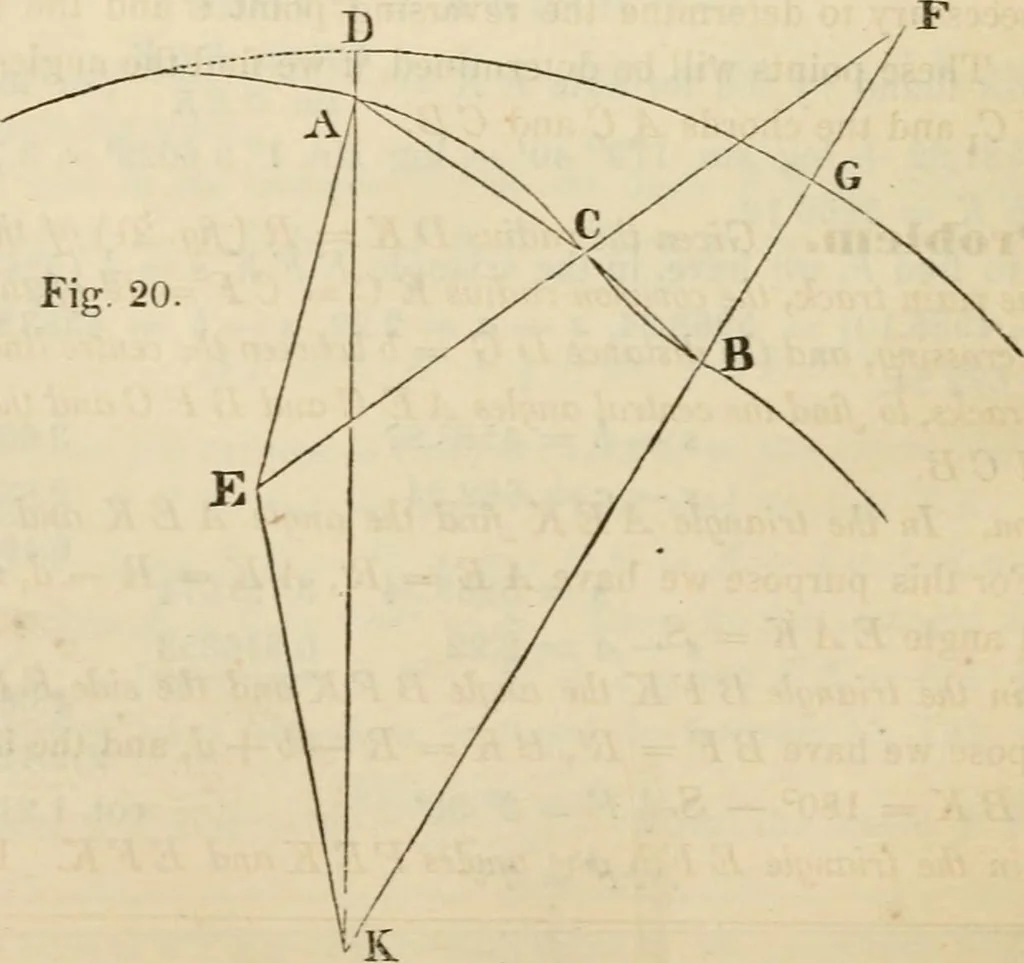

track parallel tothe main track, as A CB (fig. 20), it will be necessary to determinethe reversing points C and B. These points will be detennined, if wefind the angles A E C and B F C, and the chords A C and CB. 62 Problem. Given the radius D K = R {Jig 20) of the centrtline of the main truck the… … Solution. In the triangle A E K fitrd the angle AEK and the side CROSSINGS ON CURVES. i5 e K For tliis purpose we have AE = R, A K = R — d, and tlicincluded angle E A K =- S. Or, if the frog angle has been previouslycalculated by § GO, the values of A E K and E K are already known.*Find in the…
