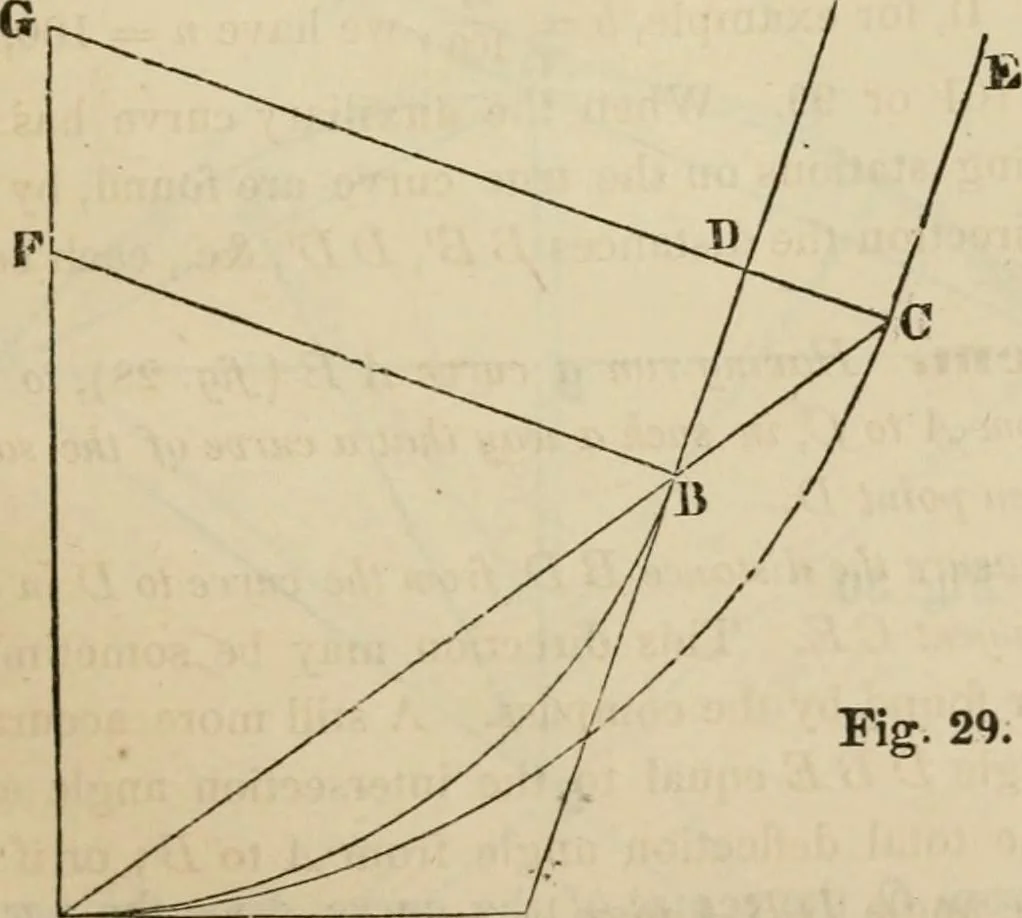

78 ProblenB. Having run a curve A B (Jig. 29) of radius li <ndeflection angle Z>, terminating in a tangent B D, to Jind the radius IV ordeflection angle D of a curve A C, that shall terminate in a given paralleltangent CE. … Fig. 29. A K iSolution. Since the radii Z? F and CG are perpendicular to the par-allel tangents CE and B L>, they are parallel, and the angle A GG =Therefore, A C G, the half-supplement of A G C, is equal t«4 4.Fb m CIRCULAR CURVES. A B F, the half-supplement of A F B. Hence A B and B C are in…
