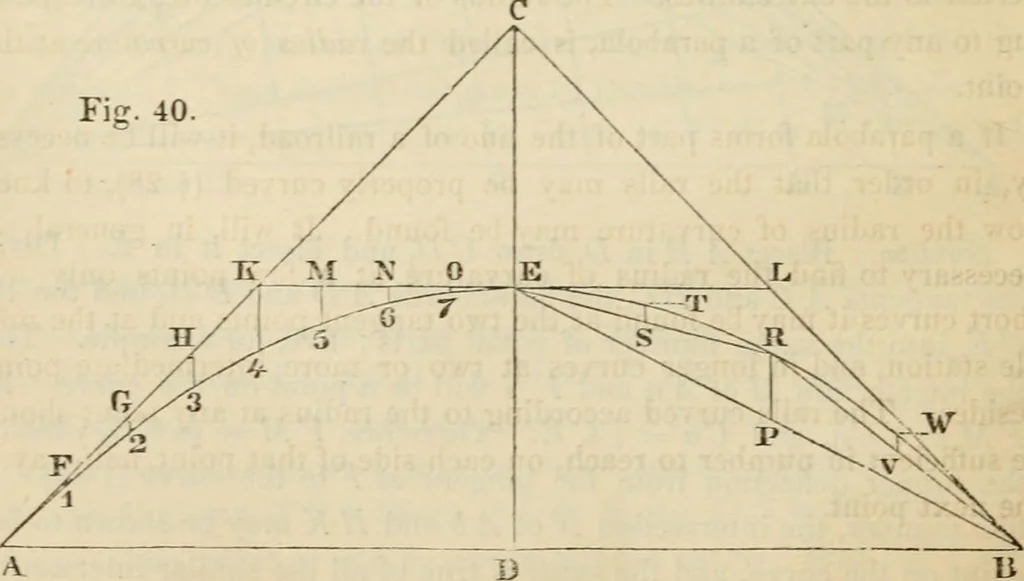

illustration of several of thepreceding methods. Example. Given AC = B C ^ 832 (fig. 40), and -1 B = 1536 tolay out a parabola A EB. We here find CD = 320. To begin withthe method by tangent deflections (§ 85), divide the tangent A C into C E ^(\0 eight equal parts. Then a = —^ = -wr = 2.5. Lay off… … find a new tangent at E, by bisecting A Cand B C {^ 89), and draw-ing KL through the points of bisection. Divide the new tangentKE =^ ^ AD ^ 384 into four equal parts, and lay oflT from KE the RADIUS OF CURVATURE. 71 same tangent deflections as were laid off from .fi iiT, namely, 3/5-22.5 A^6 = 10,…
