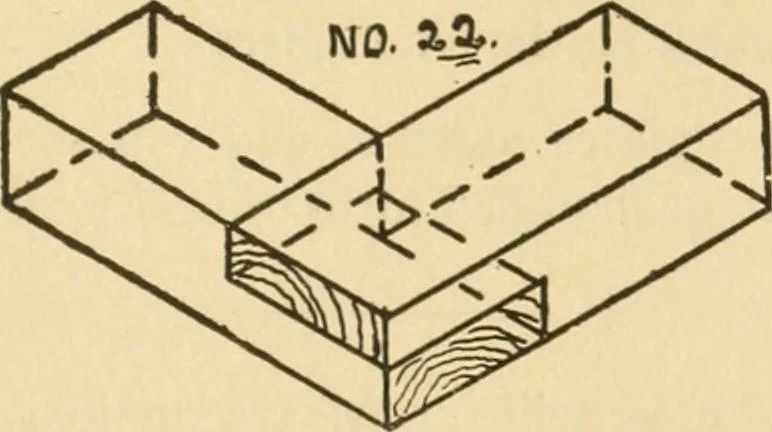

THE CRAFTSMANS HOME STUDY SCHOOLS 21, thus showing- that the straight side of the chisel is at the top andthe bevel side is doing the lifting. For the finishing you must re-verse that method and use the straight side of the chisel to make asmooth, straight joint. Do not cut from one edge only but… … Material rough:—One piece 1x1^x8 in.Material finished:—One piece ^4x1^x8 in.Construction:— 1. Prepare face side, planing the same until perfectly smooth and true, and mark x. Use parallel sticks to ascertainthe perfection of the face side. 2. Square to the face side must be the working edge, plane…
