First principles of mechanical and engineering drawing (1897)
Holt-Butterfill, H · London : Chapman & Hall · leaf 113

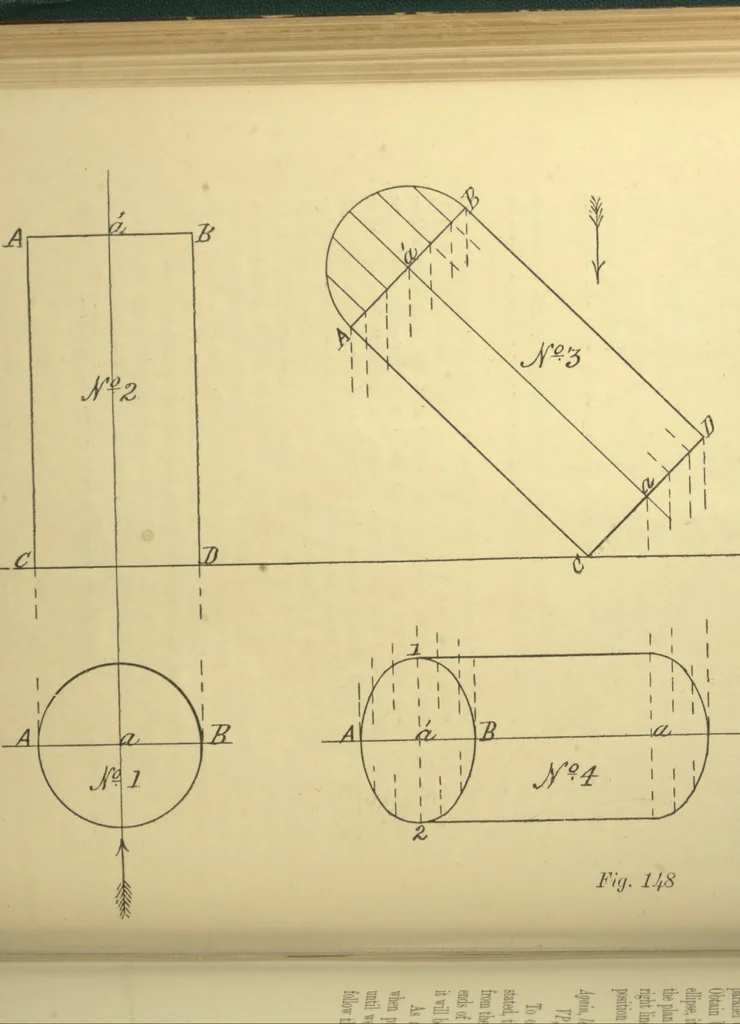

,draw lines parallel to the IL, which will be plans of the sides of thecylinder seen from above, or along the line aat No. 3 ; then findby projection the plan of that part of the bottom edge of the cylinderthat will be seen, and the required plan will be obtained. Again, let the cylinder, as in No.… … MECHANICAL AND ENGINEEEING DRAWING 101 elevation of the axis, and then finding by projection the two ends ofthe cylinder upon it, and drawing in its sides as shown in No. 6.For the projections of the cone the first problem is — Problem 50 (Fig. 149).—Given the plan of a cone, having its…
Mechanical drawing
