Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 238

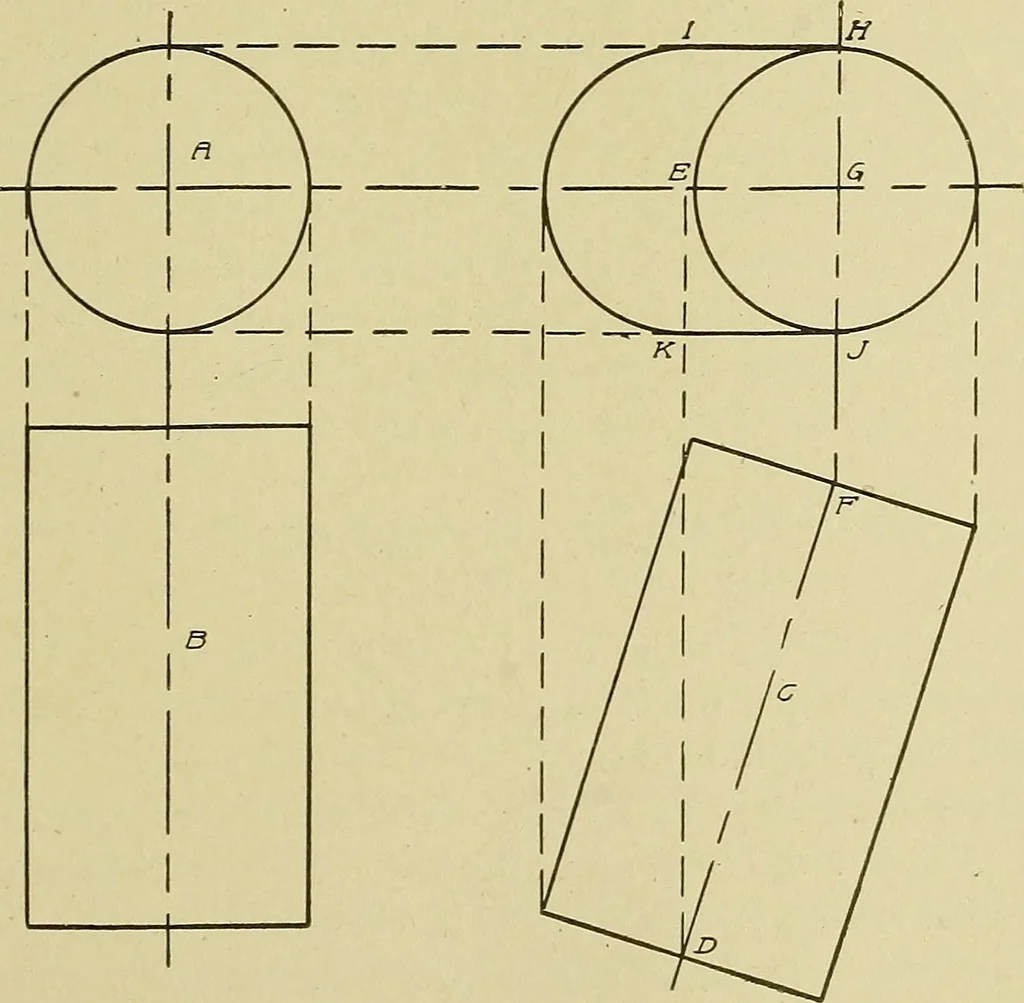

Fig. 127. Plan, Front, and Side Views after Revolving Pyramid in Fig. 125, through 30 Degrees with Horizontal Plane … Fig. 128. Projections of Cylinder Inclined to Horizontal Plane 159 94 MECHANICAL DRAWING has simply been inclined to the horizontal plane, but kept parallelto the vertical plane. The point D, the center of the circle formingthe base of the cylinder, is projected up to the point E, and withthis…
