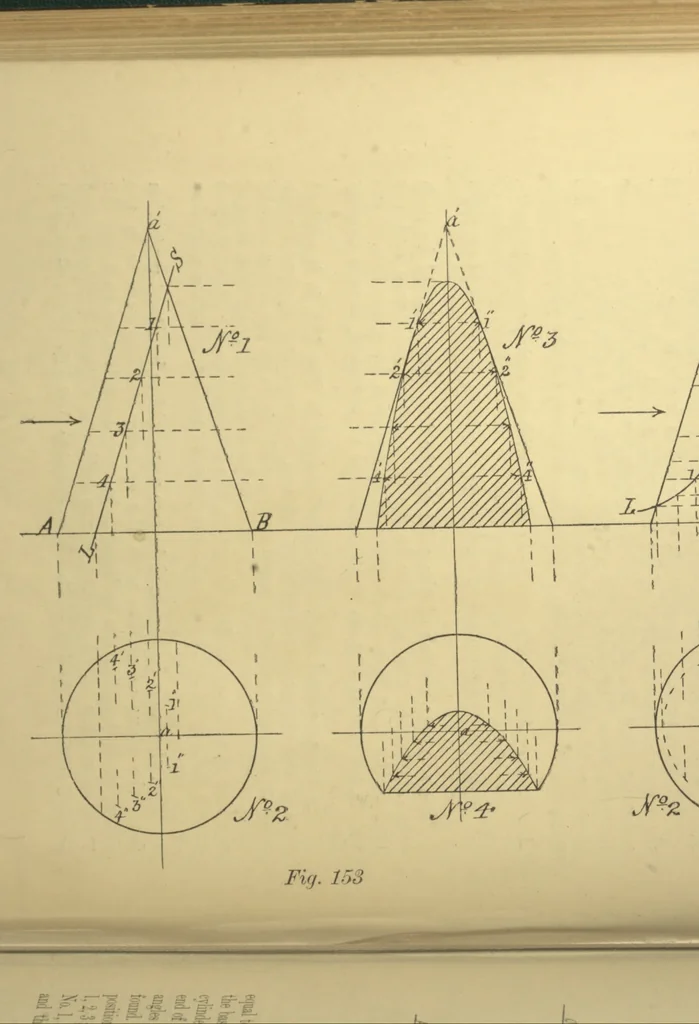

UNIVERSITY )) 112 FIRST PRINCIPLES OF … MECHANICAL AND ENGINEERING DRAWING 113 the student a fuller insight into the methods of procedure in such acase, is the one adopted. Now, as the cylinder is shown as vertical and the section planeinclined at 45° to its axis, to bring this plane perpendicular to the HPit must be moved through an…
