Five hundred and seven mechanical movements (1903)
Brown, Henry T. [from old catalog] · New York, Brown & Seward · leaf 31

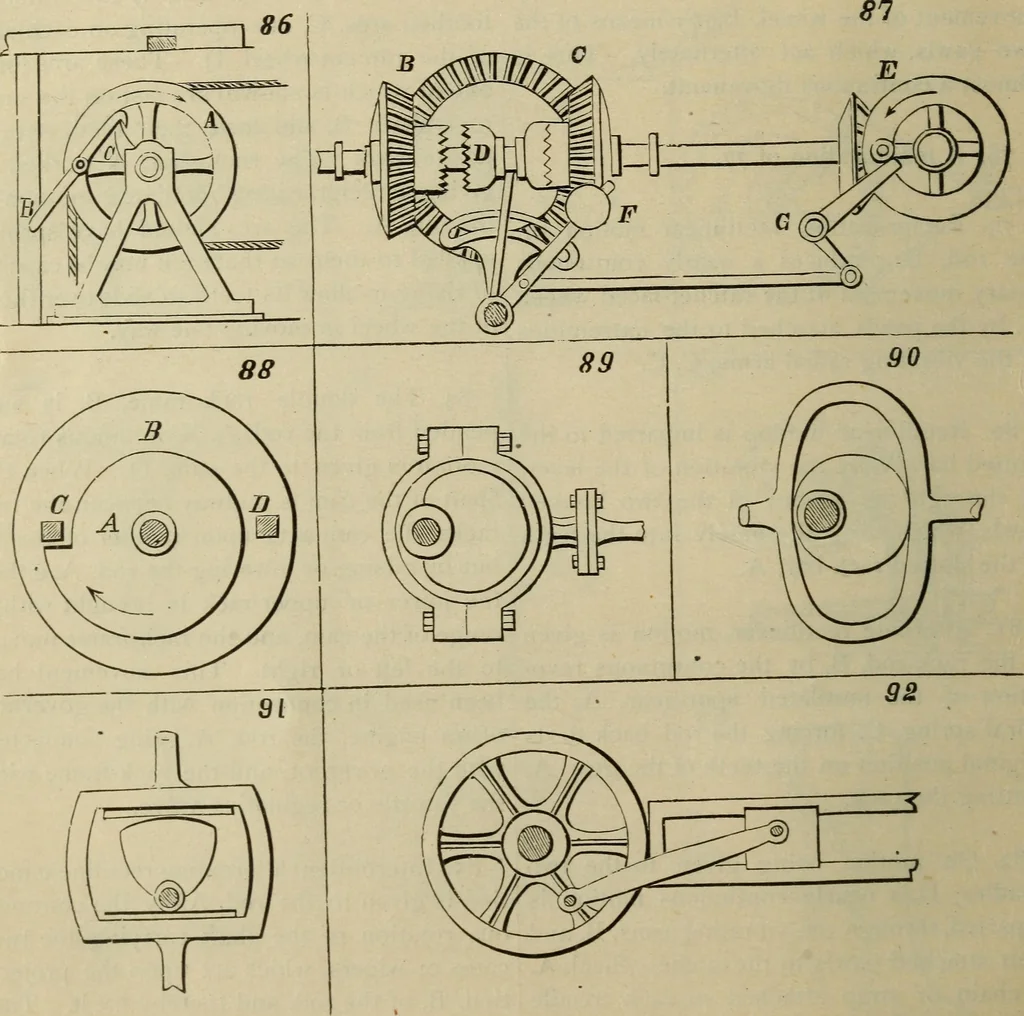

is movement hasbeen used in connection with the governorof an engine, the rod, A, being connectedwith the governor, and the rack-frame withthe throttle or regulating valve. * 85. Intermittent alternating rectilinear mo-tion is given to the rod. A, by the continu-ous rotation of the shaft carrying… … Mechanical Movements. 27 S6. A method of working a reciprocatingpump by rotary motion. A rope^ carryingthe pump-rod, is attached to the wheel, A,which runs loosely upon the shaft. Theshaft carries a cam, C, and has a continuousrotary motion. At every revolution the camseizes the hooked catch, B,…
Mechanical movements
