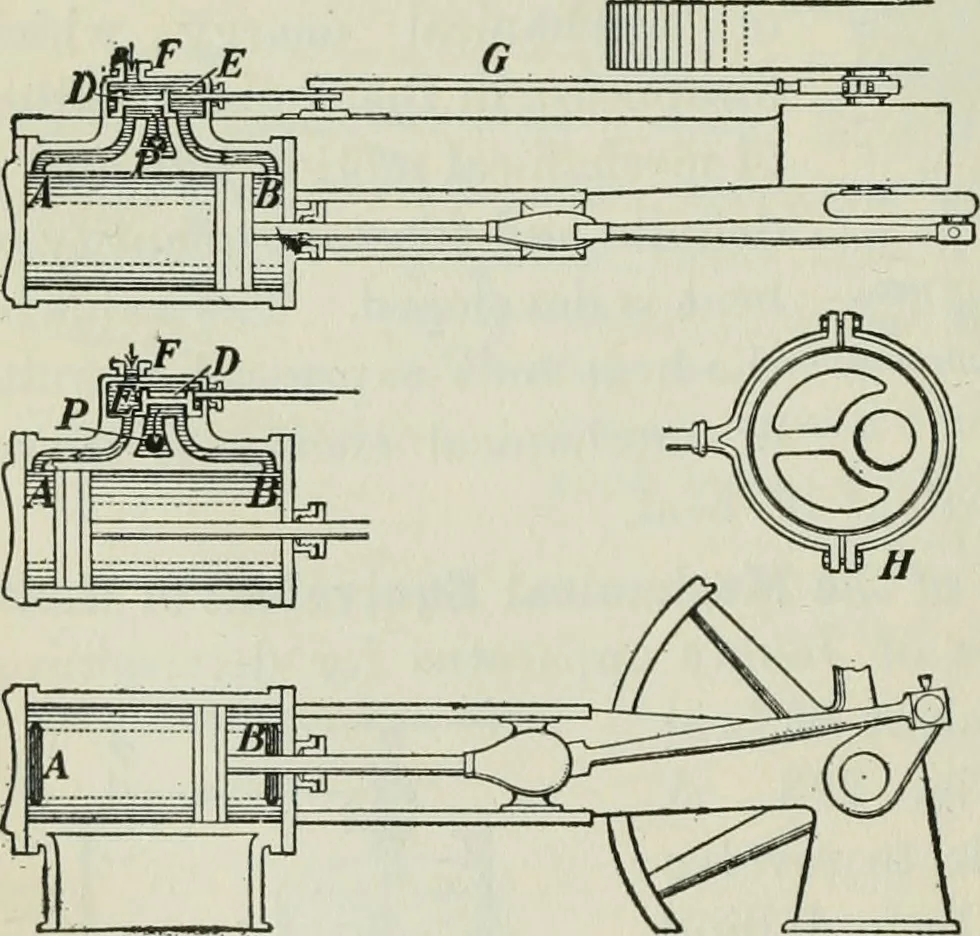

rformed its work, iscontrolled by the op-eration of a valve D. This valve is so adjusted that when the portA is connected with the steam-chest, B is connected with an exhaustpipe P^ leading to the open air or to a condenser; and when B isconnected with the cyUnder, A is connected with the exhaust… … Fig. 294.—Steam engine. A and iB, ports ; D, slide valve ;E, steam chest; F, pipe to boiler; (?, eccentric rod;U, eccentric. HIGH AND LOW PRESSURE ENGINES 269 the commoncylinder
