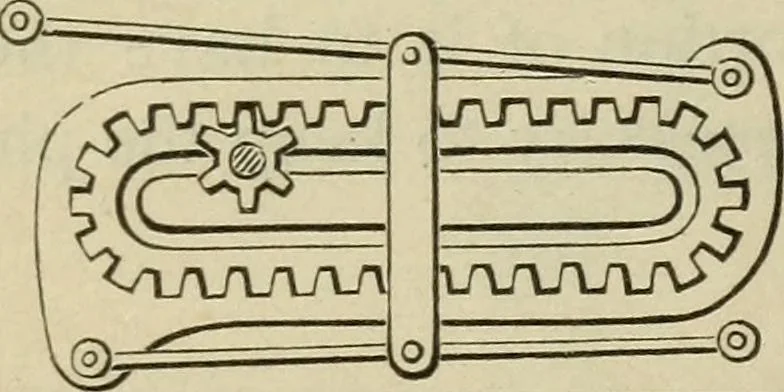

ing the wheel, A. 197. What is called a ^^mangle-rack. Acontinuous rotation of the pinion will give areciprocating motion to the square frame.The pinion-shaft must be free to rise andfall, to pass round the guides at the ends ofthe rack. This motion may be modified asfollows :—If the square frame… … T^r- 0-
