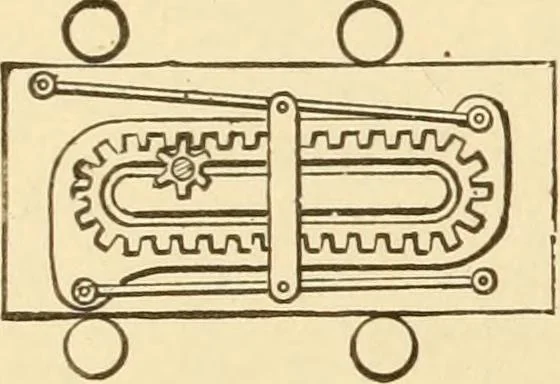

898. MANGLE RACK, guided by rollersand driven by a lantern half-pinion. The longteeth in the rack act as guides to insure atooth mesh at the end of each motion. 899. MANGLE RACK.—A reciprocating mo-tion of a frame to which is attached a pin-toothrack, the pinion being guided by the shaft rid-ing m… … 900. MANGLE RACK with stationary pinion.The rack and slot frame are jointed to the manglebox, riding in mesh with the pinion by the slotguide, leaving the mangle box free to ride and tipon the rollers. 901. ALTERNATE CIRCULAR MOTIONfrom continuous motion of geared wheels. Agrooved cam revolving…
