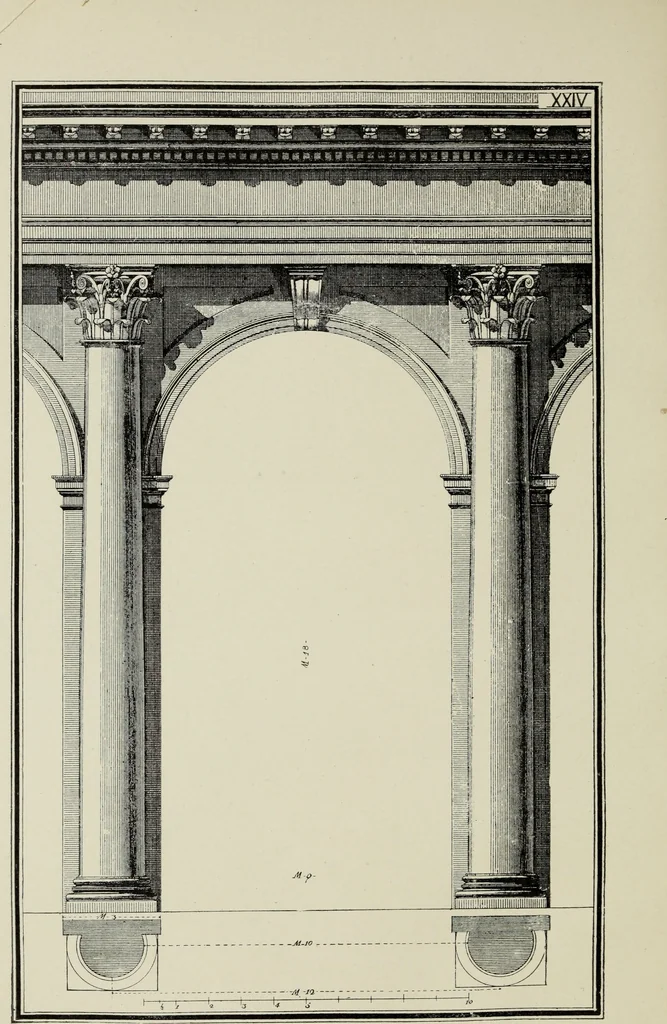

entablature and 4 for thecolumn, with base and capital. The column, with base and capital, is 20 moduli, and theentablature 5 moduli high. The Column is divided thus : base, 1 modulus ; shaft, 16moduli and 12 parts ; capital, 2 moduli and 6 parts high. The Entablature is proportioned as follows :… … PLATE XXIV. ARCHED CORINTHIAN INTERGOLUMNIATION. In this modification of the Corinthian Order the distancebetween centers of columns is 12 moduli, and the totalheight 25 moduli. The arch opening is 9 moduli wide and18 higli. The pilaster is 3 moduli wide —i of the width ofarch opening. The details…
