Vignola, 1507-1573, Juglaris, Tommaso, Locke, Warren S · [Boston, Press of Berwick & Smith] · leaf 31

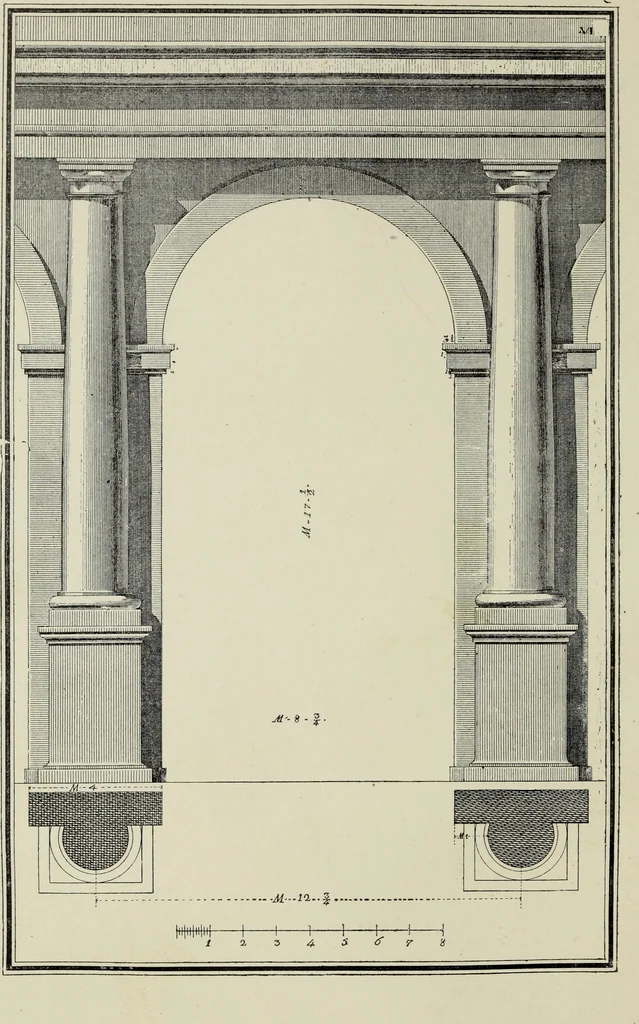

ind the columns are 3 moduli wide,which gives 9|- moduli between centers of columns. Giventhese dimensions, the others will be those established forthe simple intercolumniation. The top of the cap of the pilaster and the center of thearch are in the same horizontal line. The pilaster cap is1… … PLATE VI. TUSCAN INTERCOLUMNIATION WITH ARCHAND PEDESTAL. In this modification of the Tuscan Order we first estab-lish the opening of the arch as before, — the height twicethe width, the measurements being 8| moduli in width and17^ moduli in height. The pilasters are 4 moduli wide, and the distance…
