Vignola, 1507-1573, Juglaris, Tommaso, Locke, Warren S · [Boston, Press of Berwick & Smith] · leaf 67

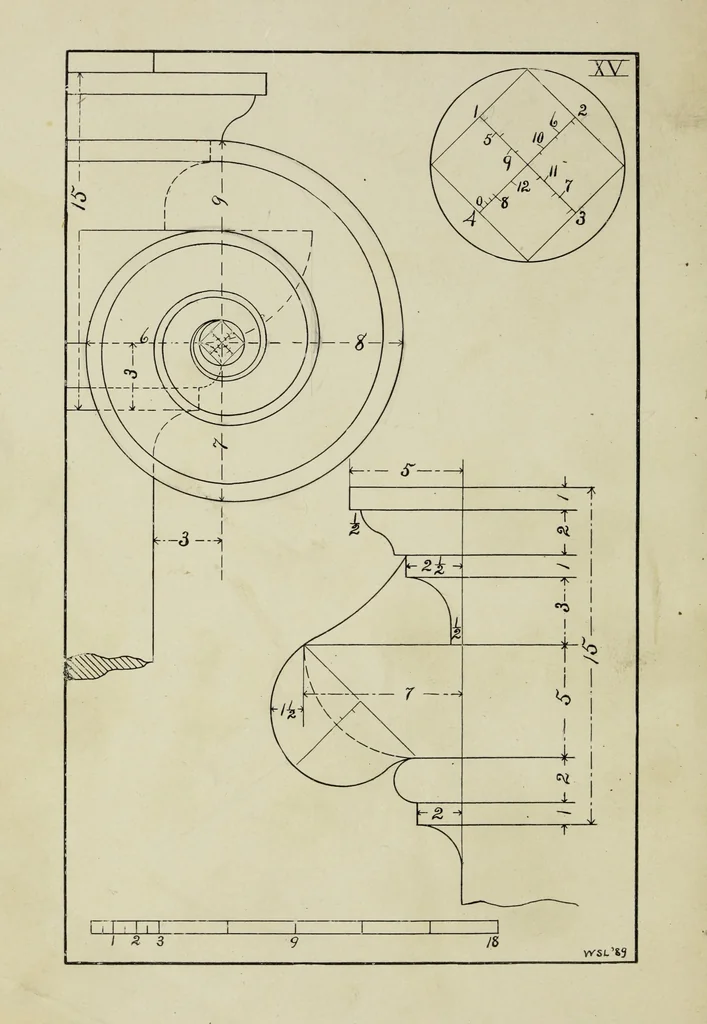

h is per-pendicular, and the other half a quarter-circle ; next comesa fillet 1 part wide, which, with the gorge, is carried roundthe volute. After the fillet comes an ogee 2 parts high anda fillet 1 part high. The Projection. From a perpendicular from the side of the smallest diam-eter of the… … PLATE XV. THE IONIC VOLUTE. A DRAWING for the volute of an Ionic capital may bemade as follows : Having the outline of the capital, thecenter of the volute is on the horizontal line of the top ofthe bead at the top of the column, and 3 parts from theside, and 18 parts from the center of the column.…
