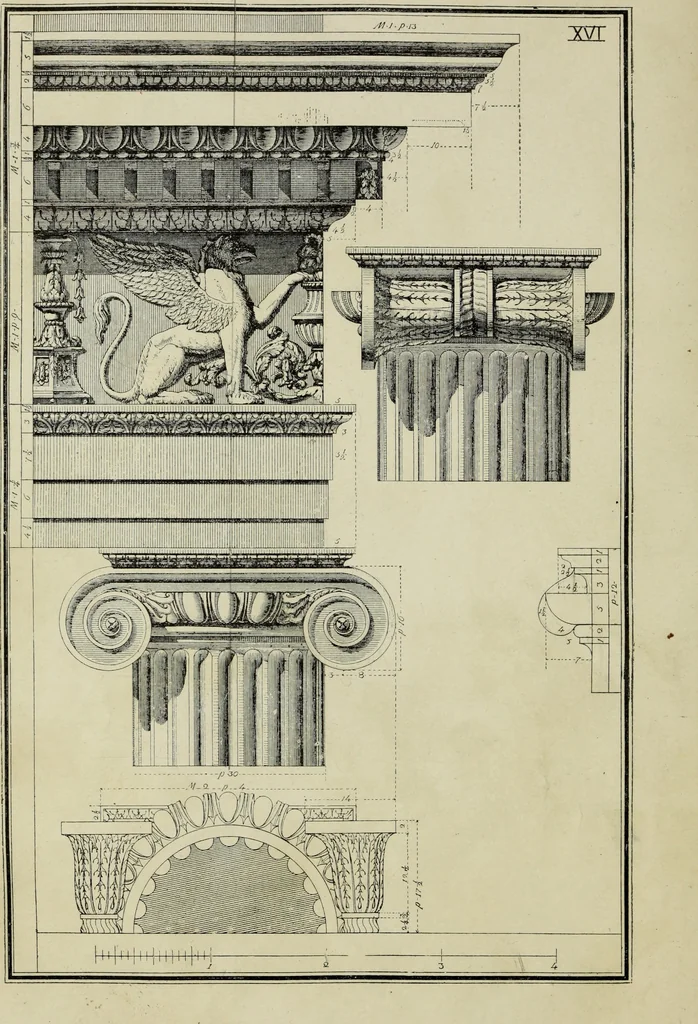

ers 5, 6, 7, 8, which are \ of the half-diago-nal from points 1, 2, 3, 4, and the third turn is made frompoints 9, 10, 11, 12. The inner line of the fillet of thevolute is made to taper toward the outside line by using acenter ^ of a half-diagonal nearer the center of the eye(see 0 on diagram) than… … PLATE XVI. THE IONIC CAPITAL AND ENTABLATURE. The capital is 15 parts higli^ and comprises the fillet andbead^ which, in the other orders, belong to the column.The capital is outlined by two perpendiculars, each 1 mod-ulus from the center of the shaft, which pass through thecenters of the eyes of…
