Vignola, 1507-1573, Juglaris, Tommaso, Locke, Warren S · [Boston, Press of Berwick & Smith] · leaf 79

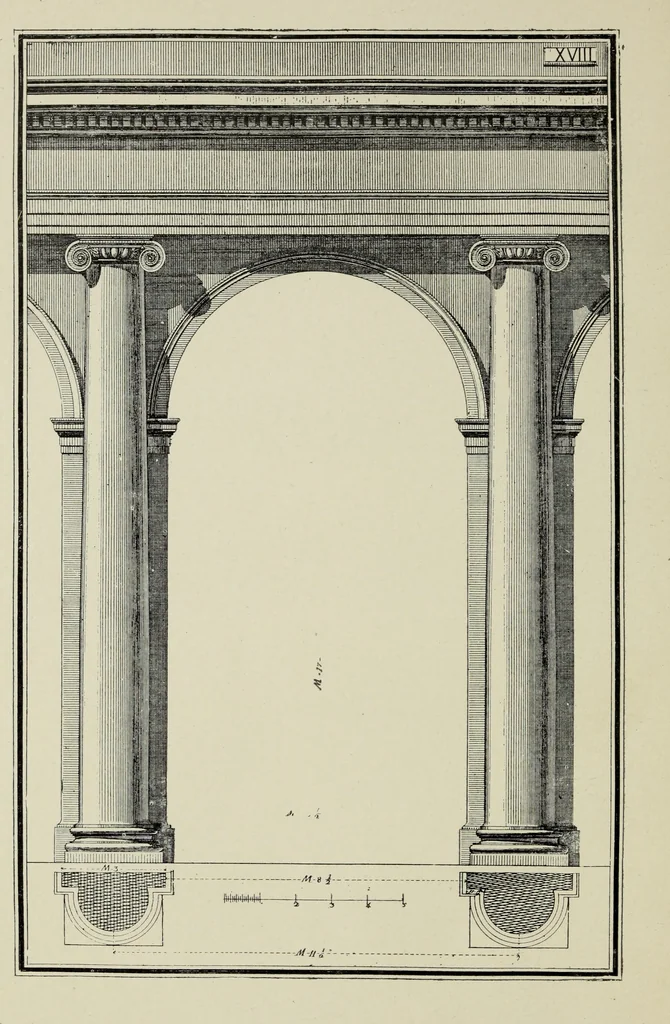

e Ionic we divide the totalheight into 5 parts^ — 4 for the column^ with base andcapital^ and 1 for the entablature. The column, with base and capital, is 18 moduli high.The base is 1 modulus high, the shaft 161, and the capitalI modulus high. The entablature is divided in proportions of 5, 6, and… … PLATE XVIII. IONIC INTERCOLUMNIATION WITH ARCH, This modification of the Ionic has 11^ moduli betweencenters of cohimns. Three of these are for the pilaster and8^ for arch opening, whose height is double its width, or17 moduli. These proportions can only be departed from under ex-traordinary…
