Vignola, 1507-1573, Juglaris, Tommaso, Locke, Warren S · [Boston, Press of Berwick & Smith] · leaf 99

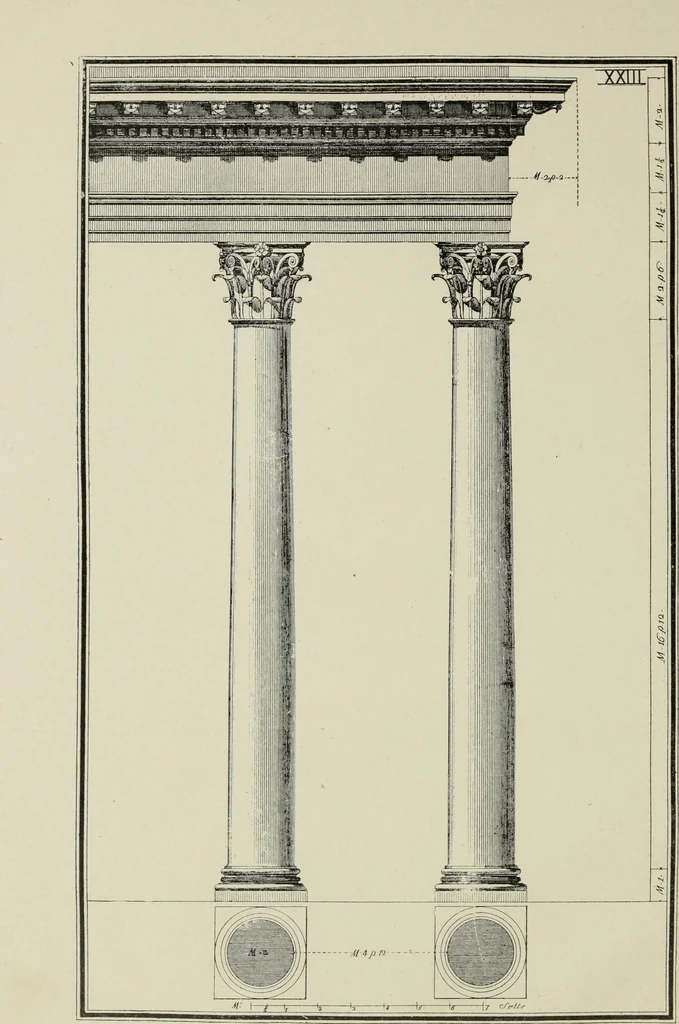

olumn, with baseand capital, or 5 moduli, divided in the proportions 3, o,and 4. The architrave is l^- moduli high divided into 3bands. The frieze is 1^ moduli high, and at the top is ornamentedby a fillet and a bead. The cornice is 2 moduli high, with 2 moduli and 2 partsprojection. The mouldings… … PLATE XXIII. SIMPLE CORINTHIAN COLUMNIATION The height of this modification of the Corinthian Orderis divided into 5 parts, 1 for the entablature and 4 for thecolumn, with base and capital. The column, with base and capital, is 20 moduli, and theentablature 5 moduli high. The Column is divided thus…
Architecture
