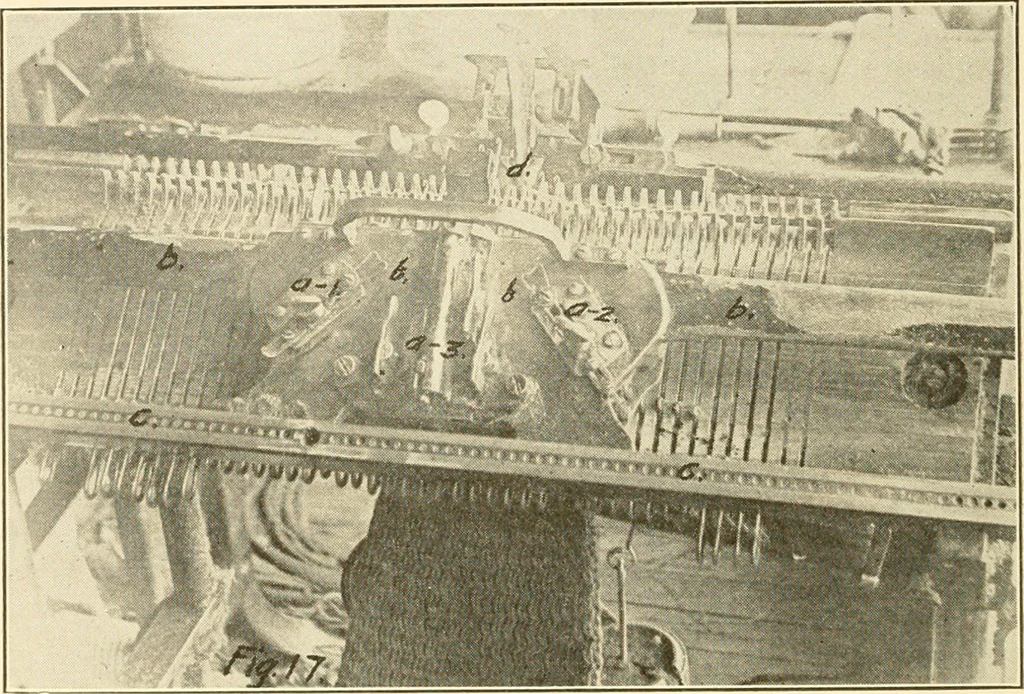

the needles, mustof necessity slide upward in the slots along the edge of thiscam. When they get to the top it will be noted that the latchesof the needles are above and clear of the loops. As the camsmove farther along, the cam a-2 comes in contact with thebutts and slides them down again. As the… … Top Side of Carriage, Over Cams. the hook draws a new loop through the old one, while thelatch closing up the hook allows the old loop to slip over theend (needle m), and the pull of the fabric draws it down on tothe new loop. The thin portions of the needle plate indicated by theletter h in Fig.…
