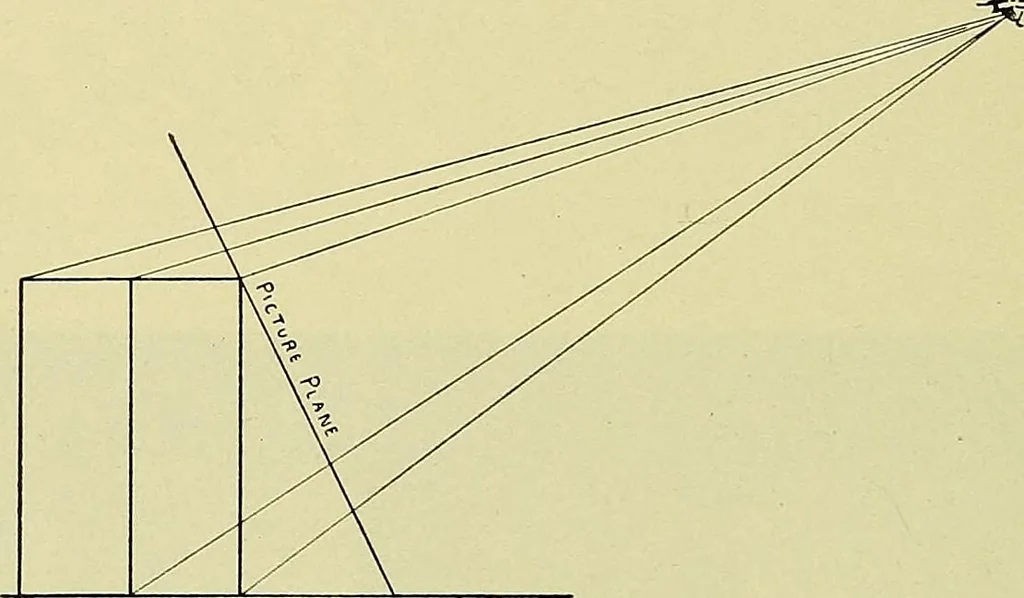

t fore-shortened, causes in the eye an image practically like that which theobject itself would produce. Fig. 21 shows that the picture plane which gives a picture whichis similar to the image in the eye must be at right angles to thedirection in which the object is seen. In the case of the… … Fig. 26, A Side View. a true picture on a plane at right angles to the direction in which an:object is seen which will not when viewed naturally, produce asatisfactory impression of the object. Fig. 25 is from a photograph of a vertical square prism below theeye, the picture plane (the negative)…
