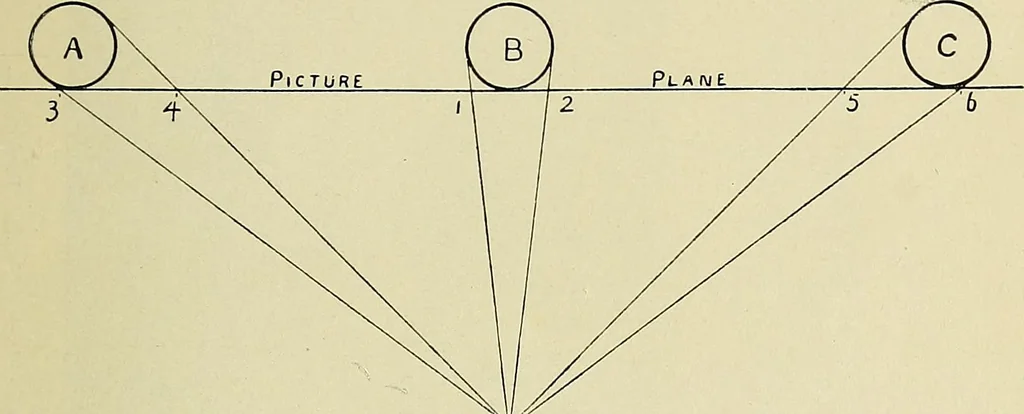

ntation. SCIENTIFIC PERSPECTIVE AND MODEL DRAWING. 109 three equal cylinders, A, B, and C, and traces upon a verticalpicture plane placed against the cylinders lines to cover eachcylinder and form the perspective of the cylinders; the cylindersmay roughly represent three equal figures. The visual… … Station +- PointFig. 4S. A Top View. scientific perspective, then, of figures arranged as in the LordsSupper, the figures at the extremes of the canvas should be repre-sented as much stouter or wider than those at the centre, in orderthat they will appear the same size as those at the centre when…
