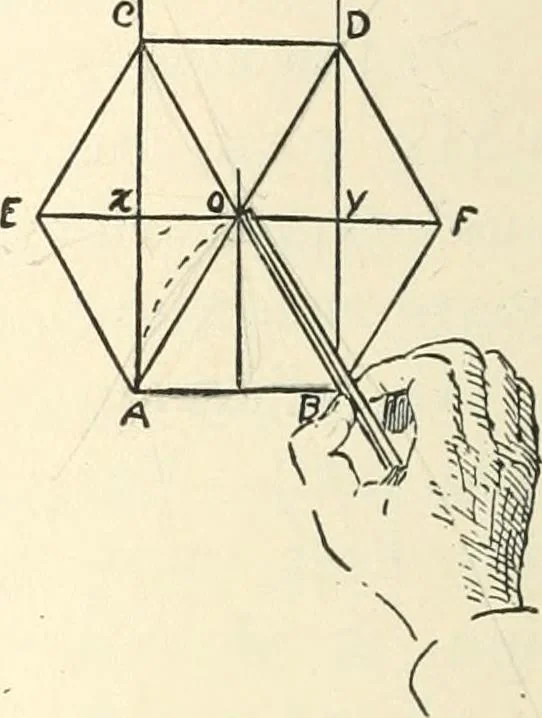

ng. Thediagonals of the rectangle will in perspective, as in the geo-metric view, form two diagonals of the hexagon. The otherdiagonal, EF, is set off on a line of indefinite length throughtheir crossing. Looking at the diagram, it is observed that thesides of the rectangle (AC and BD) and its… … Fig. 194 HEXAGONAL PLINTH IN TWO POSITIONS all equally distant from the picture plane, they appear equal, andare so set off from x and y. The hexagonal top is completed bydrawing its last four sides. The Thickness of the Plinth. — The front face of this thick-ness, being parallel to the picture…
