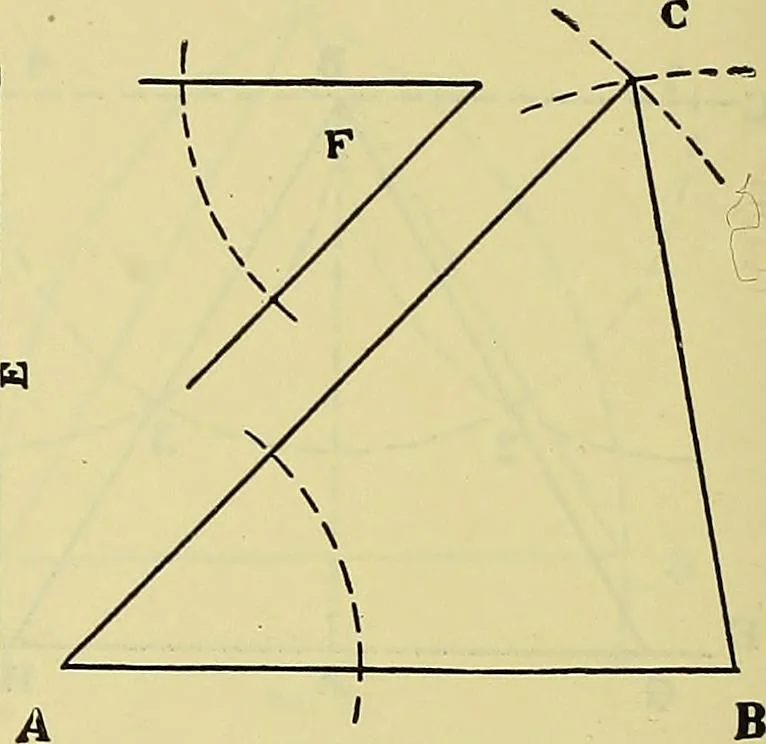

Fig. 179. Draw a line, AB, equal to D, and at the point Aconstruct an angle equal to F and make AC equalto E. Join the points C and B by a straight line,and ABC will then be the required triangle. Two sides and the (Lngle opposite one of them beinggiven to construct a required triangle. Let D and E… … Fig. 181. Draw a line, AB, equal to D. At the point Aform an angle equal to F. With the point B as acenter and a radius equal to the given line E de-scribe an arc cutting AC at C. Join the points Cand B. ABC is the required triangle. ROGERS DRAWING AND DESIGN. 95 To conslruct a square, the sides of…
